Product Summary

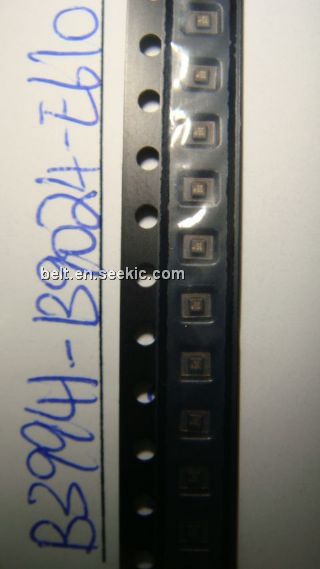

The B39941-B9024-E610 is a Low-Loss Filter for Mobile Communication.

Parametrics

B39941-B9024-E610 absolute maximum ratings: (1)Operable temperature range T: – 30 / + 85 ℃; (2)Storage temperature range Tstg: – 40 / + 85 ℃; (3)DC voltage VDC: 3V; (4)ESD voltage VESD: 100 V; (5)Input power at GSM850, GSM900 GSM1800 and GSM1900 Tx bands, PIN: 15 dBm.

Features

B39941-B9024-E610 features: (1)Low-loss RF filter for mobile telephone EGSM system, receive path; (2)Usable passband 35 MHz; (3)Unbalanced operation; (4)Impedance 50Ω input and output; (5)Ceramic Package for Surface Mounted Technology (SMT).

Diagrams

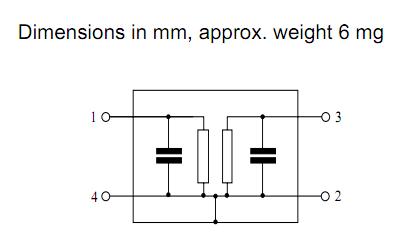

B39941-B9024-E610 block diagram
