Product Summary
The C8051F020-GQR is a 25 MIPS, 64 kB Flash, 12-Bit ADC, 100-Pin Mixed-Signal MCU.
Parametrics
C8051F020-GQR absolute maximum ratings: (1)Digital Supply Voltage: 2.7 to 3.6 V; (2)Clock Frequency Range: DC to 25MHz; (3)Port Output High Voltage: VDD–0.7V min when IOH =-3mA, Port I/O push-pull; (4)Port Output Low Voltage: 0.6 V max when IOL = 8.5 mA; (5)Input High Voltage: 0.7 x VDD V min; (6)Input Low Voltage: 0.3 x VDD V max; (7)Resolution: 12 bits typ.
Features
C8051F020-GQR features: (1)two comparators; (2)internal voltage reference; (3)VDD monitor/brown-out detector; (4)on-chip JTAG debug&boundary scan; (5)high-speed 8051 μC core; (6)menory; (7)digital peripherals; (8)clock sources; (9)supply voltage: 2.7 to 3.6V; (10)100-pin TQFP.

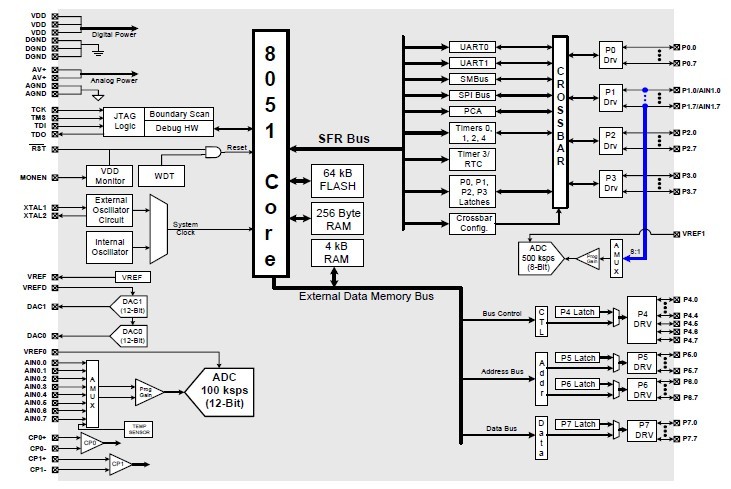

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

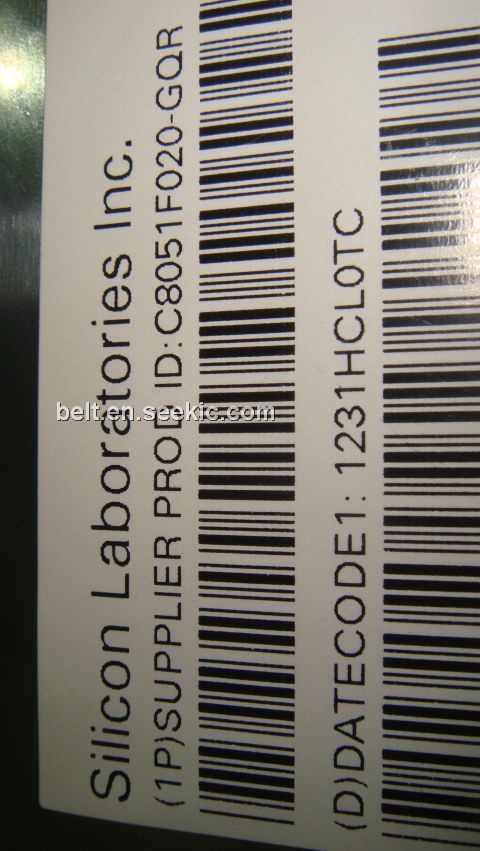

 C8051F020-GQR |
Silicon Labs |
8-bit Microcontrollers (MCU) 64KB 12ADC 100P MCU Tape and Reel |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
C805 |
Chemtronics |
Chemicals HAND GUARD LOTION SF 8 FL OZ LIQUID |
Data Sheet |
|
|
||||||||||||
 |
