Product Summary

The CY7C63723C-SXC is an 8-bit RISC one-time-programmable (OTP) microcontroller. The instruction set has been optimized specifically for USB and PS/2 operations, although the microcontrollers can be used for a variety of other embedded applications. The CY7C63723C-SXC features up to 16 GPIO pins to support USB, PS/2 and other applications. The I/O pins are grouped into two ports (Port 0 to 1) where each pin can be individually configured as inputs with internal pull-ups, open drain outputs, or traditional CMOS outputs with programmable drive strength of up to 50 mA output drive. Additionally, each I/O pin can be used to generate a GPIO interrupt to the microcontroller. Note the GPIO interrupts all share the same “GPIO” interrupt vector.

Parametrics

CY7C63723C-SXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –0℃ to +70℃; (3)Supply Voltage on VCC Relative to VSS: –0.5V to +7.0V; (4)DC Input Voltage: –0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to + VCC+0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: >2000V; (8)Latch-up Current: >200 mA.

Features

CY7C63723C-SXC features: (1)Optional 6-MHz internal oscillator mode; (2)Watchdog Reset (WDR); (3)Low-voltage Reset at 3.75V; (4)Internal brown-out reset for suspend mode; (5)Improved output drivers to reduce EMI; (6)Operating voltage from 4.0V to 5.5VDC; (7)Operating temperature from 0℃ to 70℃; (8)CY7C63743C available in 24-pin SOIC, 24-pin PDIP, 24-pin QSOP; (9)Industry standard programmer support.

Diagrams

CY7C63723C-SXC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

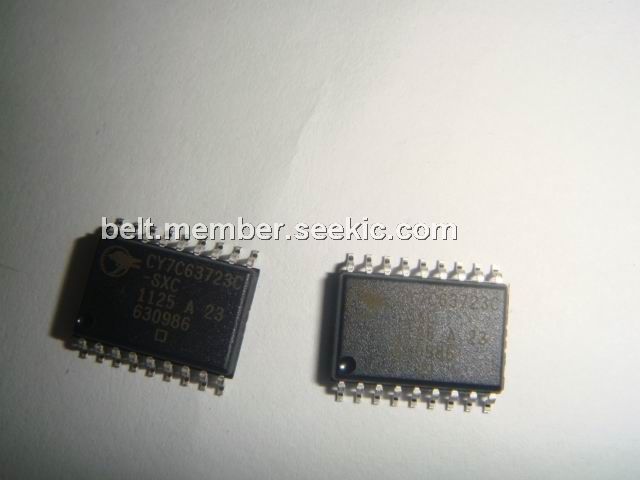

CY7C63723C-SXC
CY7C63723C-SXC

Cypress Semiconductor

I/O Controller Interface IC USB/PS/2 Combo LoSpd Peripheral Controlr

Data Sheet

0-1: $1.94
1-25: $1.55
25-50: $1.41
50-100: $1.21
CY7C63723C-SXCT
CY7C63723C-SXCT

Cypress Semiconductor

I/O Controller Interface IC USB/PS/2 Combo LoSpd Peripheral Controlr

Data Sheet

0-700: $1.09
700-1000: $1.02
1000-2000: $0.98
2000-5000: $0.96
