Product Summary
The M27C1001-12F1 is a 1 Mbit EPROM offered in the two ranges: UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C1001-12F1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
M27C1001-12F1 absolute maximum ratings: (1)TA, Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS, Temperature Under Bias: –50 to 125 ℃; (3)TSTG, Storage Temperature: –65 to 150 ℃; (4)VIO, Input or Output Voltage (except A9): –2 to 7 V; (5)VCC, Supply Voltage: –2 to 7 V; (6)VA9, A9 Voltage: –2 to 13.5 V; (7)VPP, Program Supply Voltage: –2 to 14 V.
Features
M27C1001-12F1 features: (1)5v ± 10% Supply Voltage in Read Operation; (2)Access Time: 35ns; (3)Low Power Consumption: Active Current: 30 mA at 5 MHz; Standby Current: 100 μA; (4)Programming Voltage: 12.75V ± 0.25V; (5)Programming Time: 100 μs/word; (6)Electronic Signature: Manufacturer Code: 20h; Device Code: 05h; (7)ecopackr packages available.

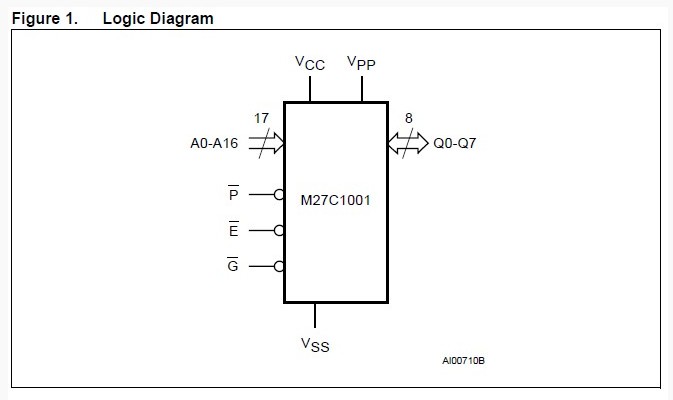

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C1001-12F1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
M27C1001-10B1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10C6 |
STMicroelectronics |
EPROM OTP 1Mx8 |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10F1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-12B1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-12C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
