Product Summary

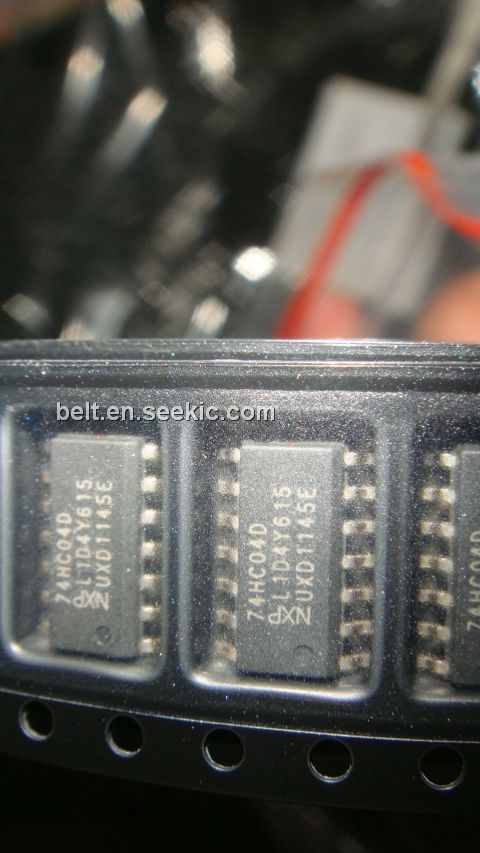

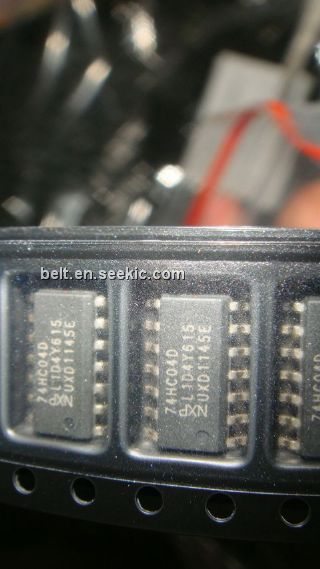

The 74HC04D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC04D provides six inverting buffers.
Parametrics
74HC04D specifications: (1)VCC supply voltage: -0.5V to +7.0 V; (2)On the condition of I < -0.5 V or VI > VCC + 0.5 V, IIK input diode current: max=±20mA; (3)On the condition of VO < -0.5 V or VO > VCC + 0.5 V, IOK output diode current: max=±20mA; (4)On the condition of -0.5 V < VO < VCC + 0.5 V, IO output source or sink current: max=±25mA; (5)ICC, IGND VCC or GND current: max=±50mA; (6)Tstg storage temperature: min=-65 ℃, max=+150 ℃; (7)On the condition of Tamb = -40 to +125 ℃, Ptot power dissipation DIP14 package: max=750mW; On the condition of Tamb = -40 to +125 ℃, other packages: Max=500mW.
Features
74HC04D features: (1) Complies with JEDEC standard no. 8-1A; (2) ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (3) Specified from -40 to +85 ℃ and -40 to +125 ℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC04D |
NXP Semiconductors |
Inverters HEX INV LSTTL COMPAT |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC04D,652 |
NXP Semiconductors |
Inverters HEX INV LSTTL COMPAT |
Data Sheet |
|
|
||||||||||||
|
74HC04D,653 |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
|
74HC04DB |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC04DB,112 |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
|
74HC04DB,118 |
NXP Semiconductors |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
 |
74HC04DR2G |
ON Semiconductor |
Inverters HEX INVERTER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC04DTR2G |
ON Semiconductor |
Inverters HEX INVERTER |
Data Sheet |
|
|
||||||||||||
