Product Summary
The AM29F010B-90JF is a 1 megabit (128 K x 8-bit) CMOS 5.0 volt-only, uniform sector flash memory. The AM29F010B-90JF is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The AM29F010B-90JF is offered in 32-pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The AM29F010B-90JF is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F010B-90JF can also be programmed or erased in standard EPROM programmers. This AM29F010B-90JF is manufactured using AMD 0.32 μm process technology, and offers all the features and benefits of the Am29F010 and Am29F010A.
Parametrics
AM29F010B-90JF absolute maximum ratings: (1)Storage Temperature. Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground. VCC: –2.0 V to +7.0 V; A9: –2.0 V to +13.0 V; (4)All other pins: –2.0 V to +7.0 V; (5)Output Short Circuit Current: 200 mA.
Features
AM29F010B-90JF features: (1)Single power supply operation. 5.0 V ± 10% for read, erase, and program operations. Simplifies system-level power requirements; (2)Manufactured on 0.32 μm process technology. Compatible with Am29F010 and Am29F010A device; (3)High performance. 45 ns maximum access time; (4)Low power consumption. 12 mA typical active read current. 30 mA typical program/erase current. <1 μA typical standby current.

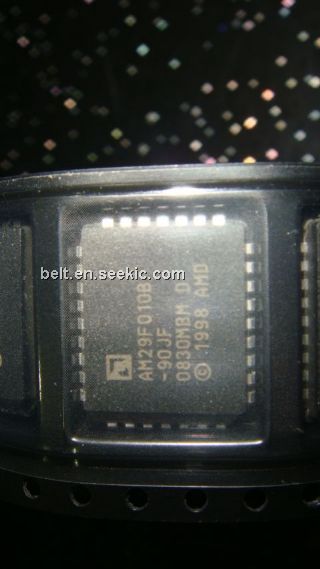

Diagrams
