Product Summary

The BTS712N1 is an N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback. It is fully protected by embedded protection functions. The applications of the BTS712N1 are: mC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads; All types of resistive, inductive and capacitive loads; Replaces electromechanical relays and discrete circuits.

Parametrics

BTS712N1 maximum ratings: (1)Supply voltage Vbb: 43 V; (2)Supply voltage for full short circuit protection Tj, start -40 to +150℃ Vbb: 34 V; (3)Power dissipation (DC)5 Ta = 25℃ Ptot: 3.6 W; (4)(all channels active) Ta = 85℃: 1.9 W.

Features

BTS712N1 features: (1)Overload protection; (2)Current limitation; (3)Short-circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)Open load detection in OFF-state; (11)CMOS compatible input; (12)Loss of ground and loss of Vbb protection; (13)Electrostatic discharge (ESD) protection.

Diagrams

BTS712N1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

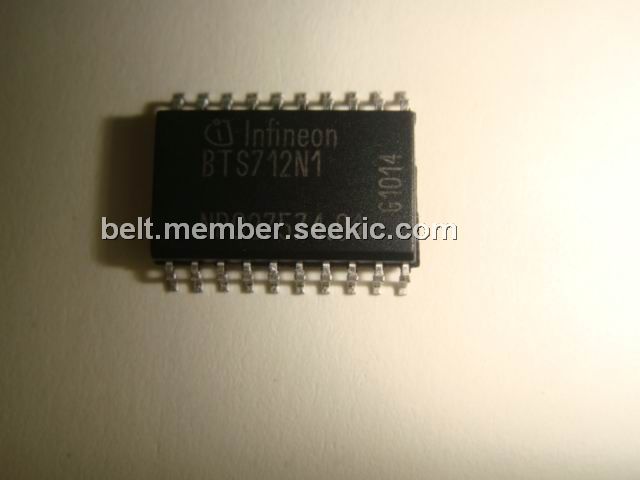

BTS712N1
BTS712N1

Infineon Technologies

Power Switch ICs - POE / LAN SMART 4-CH HI-SIDE PWR SWITCH

Data Sheet

0-490: $2.55
490-500: $2.07
500-1000: $1.74
1000-2000: $1.66
