Product Summary

The ISL6260CRZ-T is a Multiphase Core Regulator for IMVP-6 Mobile CPUs. It provides microprocessor core voltage regulation by driving up to 3 channels in parallel. The multiphase buck converter architecture of the ISL6260CRZ-T uses interleaved channels to multiply the output voltage ripple frequency and reduce output channel currents. The reduction in ripple results in fewer components, lower component cost, reduced power dissipation, and smaller implementation area. The ISL6260CRZ-T is used in Mobile laptop computers.

Parametrics

ISL6260CRZ-T absolute maximum ratings: (1)Supply Voltage, VDD: -0.3 - +7V; (2)Battery Voltage, VIN: +25V; (3)Open Drain Outputs, PGOOD, VR_TT#: -0.3 - +7V; (4)ALL OTHER PINS: -0.3V to (VDD + 0.3V); (5)Temperature Range: -10℃ to 100℃.

Features

ISL6260CRZ-T features: (1)Precision Multiphase Core Voltage Regulation; (2)Microprocessor Voltage Identification Input; (3)Multiple Current Sensing Approaches Supported; (4)Supports PSI# and Narrow VDC for Enhanced Battery Life (EBL) Initiatives; (5)Superior Noise Immunity and Transient Response; (6)Thermal Monitor; (7)Differential Remote Voltage Sensing; (8)High Efficiency Across Entire Load Range; (9)Programmable 1, 2 or 3 Power Channels; (10)Balanced Channel Loading Including Transients; (11)Small Footprint QFN 40 Lead 6×6 Package; (12)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

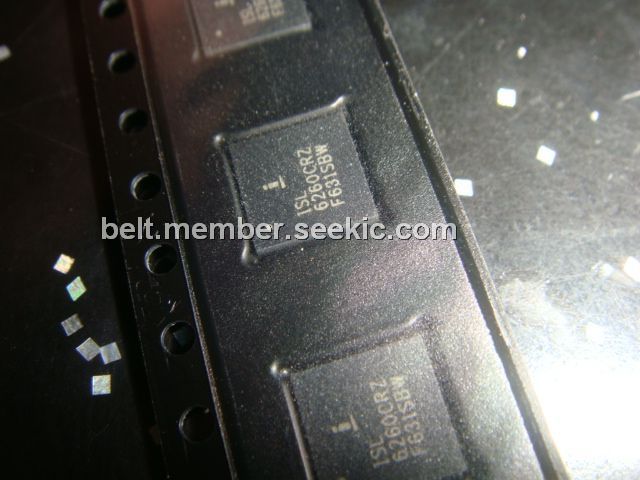

ISL6260CRZ-T diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISL6260CRZ-T
ISL6260CRZ-T

Intersil

DC/DC Switching Regulators MULTI-PHS3 PHS EXT BUCK CONT IMVP-6 4

Data Sheet

0-2074: $3.41
2074-4000: $2.21
