Product Summary

The SMA6822MP is a High Voltage 3-Phase Motor Driver. The SMA6822MP inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter systems and variable speed control systems used in energy-conserving designs to drive motors of residential and commercial appliances. These ICs take 230 VAC input voltage, and 1.5 A (continuous) output current. They can withstand voltages of up to 500 V (MOSFET breakdown voltage). Applications of the SMA6822MP include residential white goods (home applications) and commercial appliance motor control: Air conditioner fan, Refrigerator compressor, Dishwasher pump.

Parametrics

SMA6822MP absolute maximum ratings: (1)MOSFET Breakdown Voltage VDSS: 500 V; (2)Logic Supply Voltage VCC: 20 V; (3)Bootstrap Voltage VBS: 20 V; (4)Output Current, Continuous IO: 1.5 A; (5)Output Current, Pulsed IOP: 3 A; (6)Output Current for Regulator IREG: 35 mA; (7)Input Voltage VIN: –0.5 to 7 V; (8)Allowable Power Dissipation PD:28 W; (9)Thermal Resistance (Junction to Case) RθJC: 4.46 °C/W; (10)Thermal Resistance (Junction to Ambient) RθJA: 31.25 °C/W; (11)Case Operating Temperature TCOP: –20 to 100 °C; (12)Junction Temperature (IGBT) TJ: 150 °C; (13)Storage Temperature Tstg: –40 to 150 °C.

Features

SMA6822MP features: (1)Built-in pre-drive IC and 3 bootstrap diodes as a high-side drive power supply; (2)CMOS compatible input (5 V) ; (3)High-side gate driver using bootstrap circuit or floating power supply; (4)One pin for 7.5 V regulator output; (5)Built-in protection circuit for controlling power supply voltage drop ; (6)Built-in overheat detection circuit (TD) ; (7)Output of fault signal during operation of protection circuit; (8)Output current 1.5 A; (9)Small SIP (SMA 24-pin).

Diagrams

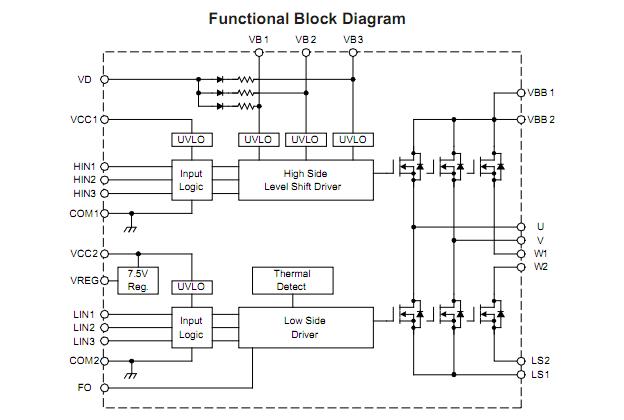

SMA6822MP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

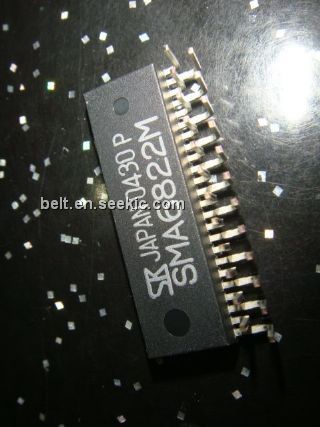

SMA6822MP
SMA6822MP

Other


Data Sheet

Negotiable
