Product Summary
The OP2177ARZ-REEL7TR-ND is a precision low noise, low input bias current operational amplifier. It features extremely low offset voltage and drift, low input bias current, low noise, and low power consump-tion. Outputs are stable with capacitive loads of over 1000 pF with no external compensation. The applications of the OP2177ARZ-REEL7TR-ND include: (1)Wireless base station control circuits; (2)Optical network control circuits; (3)Instrumentation; (4)Sensors and controls: Thermocouples; Resistor thermal detectors (RTDs); Strain bridges; Shunt current measurements; (5)Precision filters.
Parametrics
OP2177ARZ-REEL7TR-ND absolute maxing ratings: (1)Supply Voltage: 36 V; (2)Input Voltage: VS- to VS+; (3)Differential Input Voltage: ±Supply Voltage; (4)Storage Temperature Range R, RM, and RU Packages: -65℃ to +150℃; (5)Operating Temperature Range OP1177/OP2177/OP4177: -40℃ to +125℃; (6)Junction Temperature Range R, RM, and RU Packages: -65℃ to +150℃; (7)Lead Temperature, Soldering (10 sec): 300℃.
Features
OP2177ARZ-REEL7TR-ND features: (1)Low offset voltage: 60 μV maximum; (2)Very low offset voltage drift: 0.7 μV/℃ maximum; (3)Low input bias current: 2 nA maximum; (4)Low noise: 8 nV/√Hz typical; (5)CMRR, PSRR, and AVO > 120 dB minimum; (6)Low supply current: 400 μA per amplifier; (7)Dual supply operation: ±2.5 V to ±15 V; (8)Unity-gain stable; (9)No phase reversal; (10)Inputs internally protected beyond supply voltage.

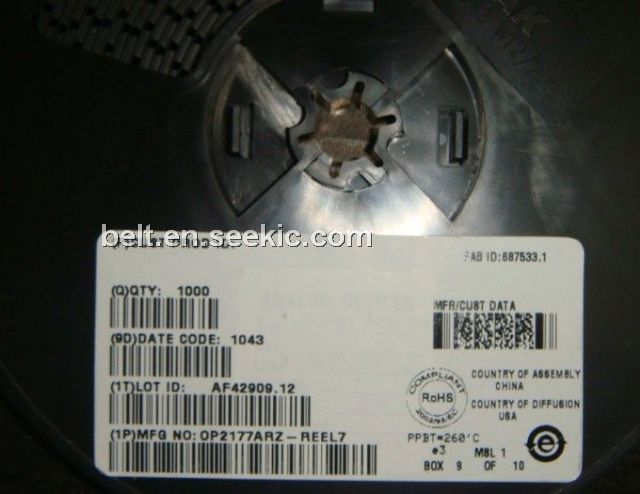

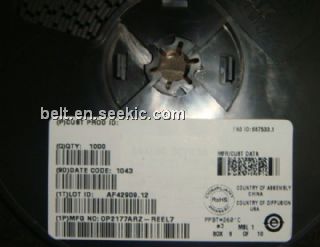

Diagrams
