SAB80C166W-M-T3-DA

Product Summary

The SAB80C166W-M-T3-DA is a representative of the Siemens SAB80C166 family of full featured single-chip CMOS microcontroller. The SAB80C166W-M-T3-DA combines high CPU performance (up to 10 million instructions per second) with high peripheral functionality and enhanced IO-capabilities.The SAB80C166W-M-T3-DA derives the CPU clock signal (operating clock) directly from the on-chip oscillator without using a prescaler. This reduces EME of the devices.

Parametrics

SAB80C166W-M-T3-DA absolute maximum ratings: (1)Ambient temperature under bias (TA): – 40 to + 85 °C; (2)Storage temperature (Tstg):– 65 to + 150 °C; (3)Voltage on VCC pins with respect to ground (VSS):– 0.5 to + 6.5 V; (4)Voltage on any pin with respect to ground (VSS):– 0.5 to VCC + 0.5 V; (5)Input current on any pin during overload condition: – 10 to + 10 mA; (6)Absolute sum of all input currents during overload condition :|100 mA|; (7)Power dissipation:1 W.

Features

SAB80C166W-M-T3-DA features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)100 ns Instruction Cycle Time at 20 MHz CPU Clock; (3)500 ns Multiplication (16 × 16 bits), 1 μs Division (32 / 16 bit); (4)Enhanced Boolean Bit Manipulation Facilities; (5)Register-Based Design with Multiple Variable Register Banks; (6)Single-Cycle Context Switching Support; (7)Up to 256 KBytes Linear Address Space for Code and Data; (8)1 KByte On-Chip RAM; (9)32 KBytes On-Chip ROM;(10)Programmable External Bus Characteristics for Different Address Ranges; (11)8-Bit or 16-Bit External Data Bus; (12)Multiplexed or Demultiplexed External Address/Data Buses; (13)Hold and Hold-Acknowledge Bus Arbitration Support; (14)512 Bytes On-Chip Special Function Register Area; (15)Idle and Power Down Modes; (16)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC); (17)16-Priority-Level Interrupt System; (18)10-Channel 10-bit A/D Converter with 9.7 μs Conversion Time; (19)16-Channel Capture/Compare Unit; (20)Two Multi-Functional General Purpose Timer Units with 5 Timers; (21)Two Serial Channels (USARTs); (22)Programmable Watchdog Timer; (23)Up to 76 General Purpose I/O Lines; (24)Direct clock input without prescaler; (25)Supported by a Wealth of Development Tools like C-Compilers,Macro-Assembler Packages,Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards; (26)On-Chip Bootstrap Loader; (27)100-Pin Plastic MQFP Package (EIAJ).

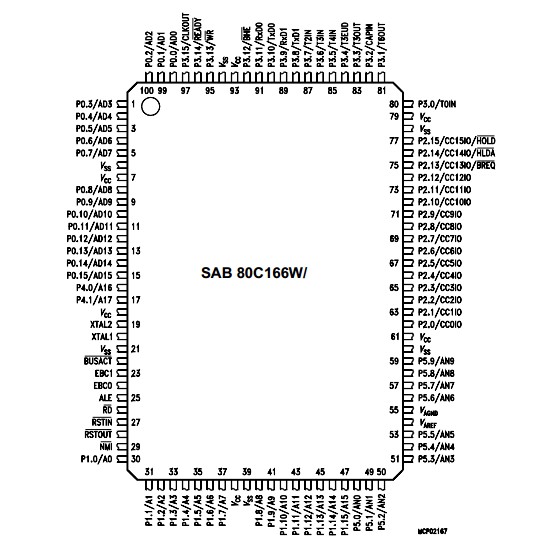

Diagrams
