Product Summary

The 3296X-1-501LF is a Square Trimming Potentiometer.

Parametrics

3296X-1-501LF absolute maximum ratings: (1)Standard Resistance Range: 10 ohms to 2 megohms; (2)Resistance Tolerance: ±10 % std; (3)Absolute Minimum Resistance: 1 % or 2 ohms max.; (4)Contact Resistance Variation: 1.0 % or 3 ohms max.); (5)Adjustability Voltage: ±0.01 %; (6)Resistance: ±0.05 %; (7)Resolution: Infinite; (8)Insulation Resistance: 500 vdc. 1,000 megohms min; (9)Sea Level: 900 vac; (10)70,000 Feet: 350 vac; (11)Effective Travel: 25 turns nom.

Features

3296X-1-501LF features: (1)Multiturn / Cermet / Industrial / Sealed; (2)5 terminal styles; (3)Tape and reel packaging available; (4)Chevron seal design; (5)Listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035; (6)Mounting hardware available H-117P); (7)Lead free version available.

Diagrams

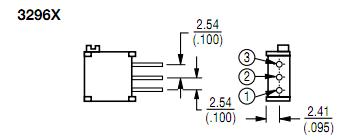

3296X-1-501LF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
3296X-1-501LF
3296X-1-501LF

Bourns

Trimmer Resistors - Through Hole 3/8" 500ohms Sealed Horizontal Adjust

Data Sheet

0-1: $1.50
1-10: $1.36
10-50: $1.17
50-100: $0.95
