Product Summary

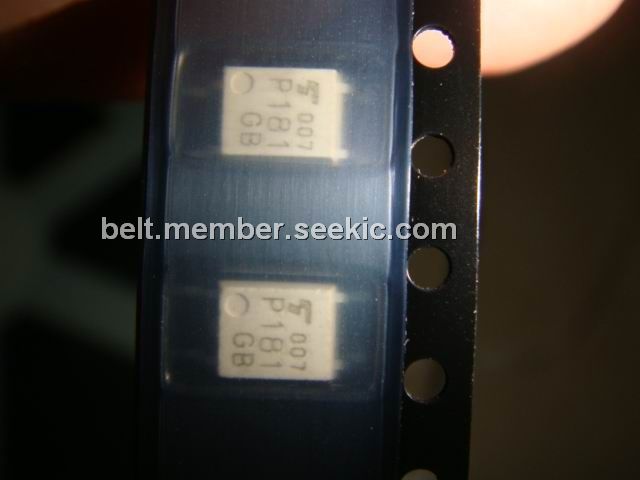

The TLP181GB is a mini flat coupler. It is a small outline coupler, suitable for surface mount assembly. The TLP181GB consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode. The applications of it are Office Machine, Programmable Controllers, AC / DC-Input Module, Telecommunication.
Parametrics
TLP181GB absolute maximum ratings: (1)Forward current:50mA ; (2)Forward current detating:-0.7mA /℃(Ta ≥ 53℃); (3)Pulse forward current (100μs pulse, 100pps):1A ; (4)Reverse voltage:5V ; (5)Junction temperature:125℃; (6)Collector-emitter voltage:80V ; (7)Emitter-collector voltage:7V ; (8)Collector current:50mA ; (9)Collector power dissipation (1 Circuit):150mW ; (10)Collector power dissipation derating (1 Circuit Ta ≥ 25℃):-1.5mW/℃; (11)Storage temperature range:-55℃ to 125℃; (12)Operating temperature range:-55℃ to 100℃; (13)Lead soldering temperature:260℃ (10s); (14)Total package power dissipation:200mW ; (15)Total package power dissipation derating (Ta ≥ 25℃):-2.0mW/℃; (16)Isolation voltage (AC, 1min., R.H. ≤ 60%):3750Vrms .
Features
TLP181GB features: (1)Collector-emitter voltage: 80V (min.) ; (2)Current transfer ratio: 50% (min.), Rank GB: 100% (min.) ; (3)Isolation voltage: 3750Vrms (min.) ; (4)UL recognized: UL1577, file no. E67349 ; (5)Option (V4) type: VDE approved: EN 60747-5-2 satisfied, Maximum operating insulation voltage: 565VPK, Highest permissible over voltage: 6000VPK ; (6)BSI approved: BS EN60065:2002, certificate no.8285, BS EN60950-1:2002, certificate no.8286.
