Product Summary

The ULN2803AFWG is a high voltage, high current darlington drivers comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications of the ULN2803AFWG include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Parametrics

ULN2803AFWG absolute maximum ratings: (1)Output sustaining voltage VCE (SUS): -0.5 to 50 V ; (2)Output current IOUT: 500 mA / ch; (3)Input voltage VIN: -0.5 to 30 V ; (4)Clamp diode reverse voltage VR: 50 V ; (5)Clamp diode forward current IF: 500 mA ; (6)Power dissipation: 1.47W; (7)Operating temperature Topr : -40 to 85℃; (8)Storage temperature Tstg: -55 to 150℃.

Features

ULN2803AFWG features: (1)Output current (single output) 500 mA (Max.) ; (2)High sustaining voltage output 50 V (Min.) ; (3)Output clamp diodes ; (4)Inputs compatible with various types of logic. ; (5)Package Type-APG : DIP-18pin ; (6)Package Type-AFWG : SOL-18pin.

Diagrams

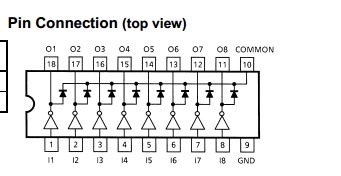

ULN2803AFWG Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ULN2803AFWG(5,EL,M
ULN2803AFWG(5,EL,M

Toshiba

Transistors Darlington 8CH. 50V/.5A IFD IC

Data Sheet

Negotiable
ULN2803AFWG(5,M)
ULN2803AFWG(5,M)

Toshiba

Transistors Darlington 8CH. 50V/.5A IFD IC

Data Sheet

Negotiable
ULN2803AFWG(O,EL,M
ULN2803AFWG(O,EL,M

Toshiba

Transistors Darlington 8ch 500mA 50V 2.7k Ohm 5V -40/85

Data Sheet

0-1: $0.47
1-10: $0.37
10-100: $0.28
100-250: $0.20
ULN2803AFWG(C,ELHA
ULN2803AFWG(C,ELHA

Toshiba

Transistors Darlington 8ch 500mA 50V 2.7k Ohm 5V -40/85

Data Sheet

0-1: $0.47
1-10: $0.37
10-100: $0.34
100-250: $0.28
ULN2803AFWG(O,M)
ULN2803AFWG(O,M)

Toshiba

Transistors Darlington 8-ch 500mA 50V 2.7 kOhm 5V CMOS

Data Sheet

Negotiable
