Product Summary

The BTS711L1 is a smart high-side power switch. N channel vertical power FET BTS711L1 with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. The BTS711L1 provides embedded protective functions.

Parametrics

BTS711L1 absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 4) Vbb: 43 V; (2)Supply voltage for full short circuit protection Tj,start =-40 to +150℃; (3)Vbb: 34 V; (4)Load current (Short-circuit current, see page 5) IL self-limited A; (5)Operating temperature range Tj: -40 to +150℃; (6)Storage temperature range Tstg: -55 to +150℃; (7)Power dissipation (DC)5 Ta = 25℃: Ptot 3.6W; (8)(all channels active) Ta = 85℃: 1.9W.

Features

BTS711L1 features: (1)Overload protection; (2)Current limitation; (3)Short-circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)Open load detection in ON-state; (11)CMOS compatible input; (12)Loss of ground and loss of Vbb protection; (13)Electrostatic discharge (ESD) protection.

Diagrams

BTS711L1 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

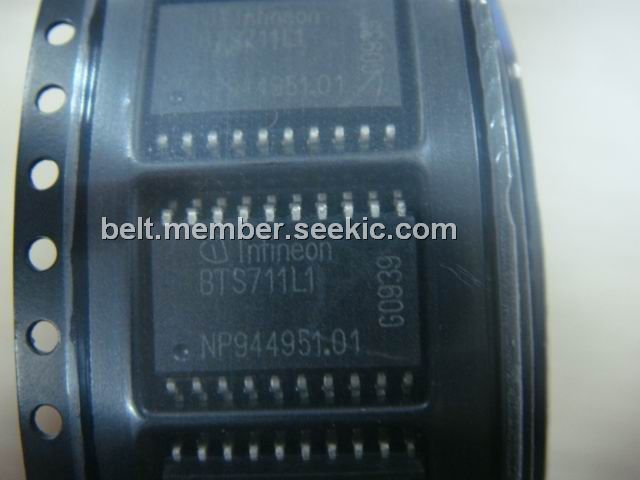

BTS711L1
BTS711L1

Infineon Technologies

Power Switch ICs - Power Distribution SMART 4-CH HI-SIDE PWR SWITCH

Data Sheet

0-1: $3.39
1-10: $3.05
10-100: $2.48
100-250: $2.36
