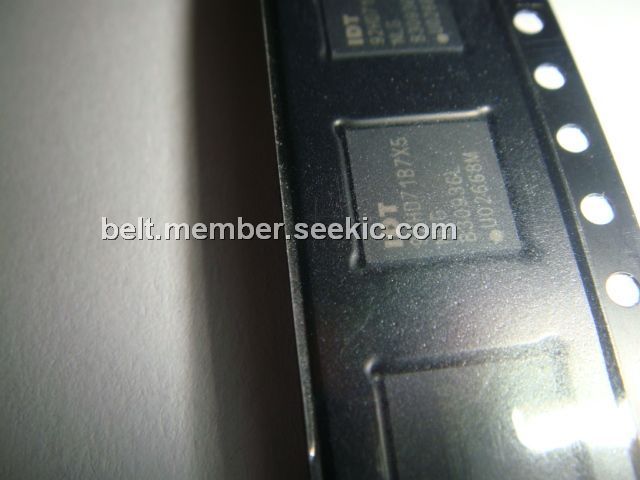

Product Summary

The 92HD71B7X5NLGXB3X8 is a low power optimized, high fidelity, 4-channel audio codec compatible with Intel’s High Definition (HD) Audio Interface. The 92HD71B7X5NLGXB3X8 codec provides stereo 24-bit resolution with sample rates up to 192kHz. Dual SPDIF provides connectivity to consumer electronic equipment that is WLP complaint. The 92HD71B7X5NLGXB3X8 provides high quality, HD Audio capability to notebook and business desktop PC applications.

Parametrics

92HD71B7X5NLGXB3X8 absolute maximum ratings: (1)Analog maximum supply voltage: 6 Volts; (2)Digital maximum supply voltage: 5.5 Volts; (3)VREFOUT output current: 5 mA; (4)Voltage on any pin relative to ground: Vss - 0.3 V to Vdd + 0.3 V; (5)Operating temperature: 0 ℃ to +70 ℃; (6)Storage temperature: -55 ℃ to +125 ℃.

Features

92HD71B7X5NLGXB3X8 features: (1)4 Channels (2 stereo DACs and 2 stereo ADCs) with 24-bit resolution; (2)Microsoft WLP 3/4 premium logo compliant, as defined in WLP 3.09; (3)Optimized and flexible power management with pop/click mitigation; (4)2 independent S/PDIF Output converters for WLP compliant HDMI/SPDIF support; (5)Support for 1.5V and 3.3V HDA signaling with runtime selection; (6)Digital microphone input (mono, stereo, or quad array); (7)3 Adjustable VREF Out pins for microphone bias; (8)High performance analog mixer option; (9)6 analog ports; (10)Supports to 3 stereo microphone inputs; (11)Two-pin volume up/down control; (12)Digital PC Beep to all outputs; (13)Integrated headphone amp.

Diagrams

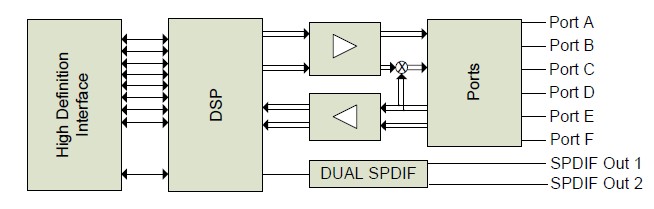

92HD71B7X5NLGXB3X8 diagram
