Product Summary

The ADG409BR is a monolithic CMOS analog multiplexer comprising eight single channels and four differential channels respectively. The ADG409BR switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device.When disabled, all channels are switched OFF.

Parametrics

ADG409BR absolute maximum ratings: (1)VDD to VSS :+44 V; (2)VDD to GND : –0.3 V to +25 V; (3)VSS to GND: +0.3 V to –25 V; (4)Analog, Digital Inputs2: VSS –2 V to VDD +2 V or 20 mA,Whichever Occurs First; (5)Continuous Current, S or D: 20 mA; (6)Peak Current, S or D(Pulsed at 1 ms, 10% Duty Cycle max) : 40 mA; (7)Operating Temperature Range:Industrial (B Version) : –40°C to +85°C;Extended (T Version) :–55°C to +125°C;Storage Temperature Range :–65°C to +150°C; (8)Junction Temperature :+150°C; (9)Cerdip Package, Power Dissipation: 900 mW; (10)θJA, Thermal Impedance:76°C/W; (11)Lead Temperature, Soldering (10 sec):+300°C; (12)Plastic Package, Power Dissipation : 470 mW; (13)θJA, Thermal Impedance :117°C/W; (14)Lead Temperature, Soldering (10 sec) :+260°C; (15)TSSOP Package, Power Dissipation:450 mW; (16)θJA, Thermal Impedance :155°C/W; (17)θJC, Thermal Impedance:50°C/W; (18)SOIC Package, Power Dissipation: 600 mW; (19)θJA, Thermal Impedance:77°C/W; (20)Lead Temperature, Soldering; (21)Vapor Phase (60 sec):+215°C; (22)Infrared (15 sec) : +220°C.

Features

ADG409BR features: (1)44 V Supply Maximum Ratings; (2)VSS to VDD Analog Signal Range; (3)Low On Resistance (100 V max); (4)Low Power (ISUPPLY < 75 mA); (5)Fast Switching; (6)Break-Before-Make Switching Action; (7)Plug-in Replacement for DG408/DG409.

Diagrams

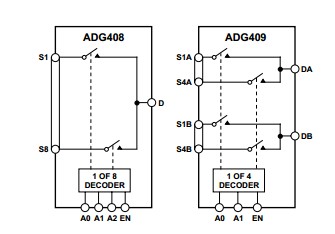

ADG409BR Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADG409BR
ADG409BR


IC MULTIPLEXER DUAL 4X1 16SOIC

Data Sheet

0-48: $3.02
ADG409BRU-REEL
ADG409BRU-REEL

Analog Devices Inc.

IC MUX DUAL 4CH HI-PERF 16TSSOP

Data Sheet

Negotiable
ADG409BRU-REEL7
ADG409BRU-REEL7

Analog Devices Inc

IC MUX DUAL 4CH HI-PERF 16TSSOP

Data Sheet

1-1000: $1.95
ADG409BRUZ
ADG409BRUZ


IC MULTIPLEXER DUAL 4X1 16TSSOP

Data Sheet

0-1: $3.58
1-10: $3.20
10-100: $2.62
100-250: $2.37
250-500: $2.12
500-1000: $1.79
1000-2500: $1.71
ADG409BRZ-REEL7
ADG409BRZ-REEL7


IC MULTIPLEXER DUAL 4X1 16SOIC

Data Sheet

0-1000: $1.79
ADG409BRZ-REEL
ADG409BRZ-REEL


IC MULTIPLEXER DUAL 4X1 16SOIC

Data Sheet

0-2500: $1.71
ADG409BRZ
ADG409BRZ


IC MULTIPLEXER DUAL 4X1 16SOIC

Data Sheet

0-1: $3.58
1-10: $3.20
10-100: $2.62
100-250: $2.37
250-500: $2.12
500-1000: $1.79
1000-2500: $1.71
ADG409BRUZ-REEL7
ADG409BRUZ-REEL7


IC MULTIPLEXER DUAL 4X1 16TSSOP

Data Sheet

0-1000: $1.79
