Product Summary

The BAV99LT1G is a Dual Series Switching Diode.

Parametrics

BAV99LT1G absolute maximum ratings: (1)Reverse Voltage VR: 70 Vdc; (2)Forward Current IF: 215 mAdc; (3)Peak Forward Surge Current IFM(surge): 500 mAdc; (4)Repetitive Peak Reverse Voltage VRRM: 70 V; (5)Average Rectified Forward CurrentIF(AV): 715 mA; (6)Repetitive Peak Forward Current IFRM: 450 mA.

Features

BAV99LT1G features: (1)Pb-Free Packages are Available.

Diagrams

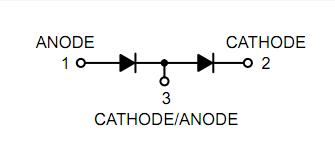

BAV99LT1G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAV99LT1G
BAV99LT1G
ON Semiconductor
Diodes (General Purpose, Power, Switching) 70V 215mA Dual
Data Sheet
0-1: $0.08
1-25: $0.07
25-100: $0.03
100-500: $0.03
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAV99
BAV99
Taiwan Semiconductor
Diodes (General Purpose, Power, Switching) 70 Volt 200mA 225mW
Data Sheet
0-9000: $0.01
BAV99 /T3
BAV99 /T3
NXP Semiconductors
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11
Data Sheet
Negotiable
BAV99,215
BAV99,215
NXP Semiconductors
Diodes (General Purpose, Power, Switching) SW DBL 75V 215MA HS
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAV99,235
BAV99,235
NXP Semiconductors
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAV99/8,215
BAV99/8,215
NXP Semiconductors
Diodes (General Purpose, Power, Switching) HIGH-SPEED SWITCHING DIODES
Data Sheet
0-1: $0.14
1-25: $0.10
25-100: $0.08
100-250: $0.05
BAV99/8,235
BAV99/8,235
NXP Semiconductors
Diodes (General Purpose, Power, Switching) SWTCH 100V 215mA
Data Sheet
0-1: $0.14
1-25: $0.10
25-100: $0.08
100-250: $0.05
