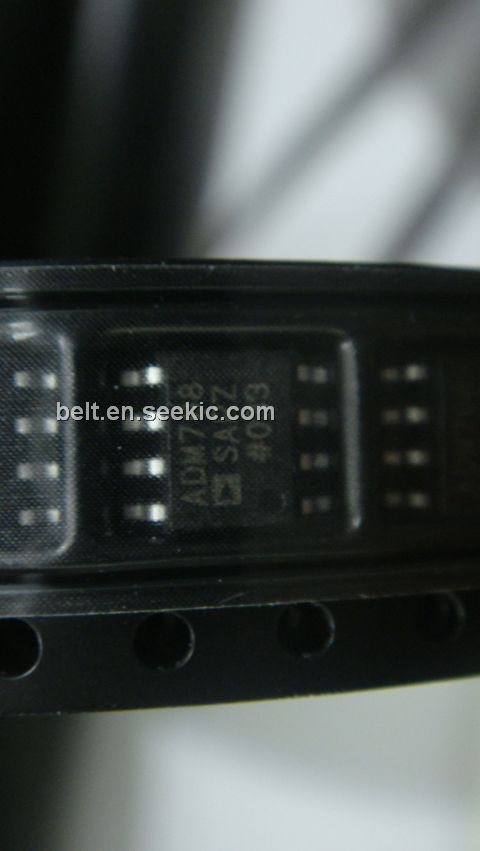

Product Summary

The ADM708SARZ is a microprocessor supervisory circuit. The ADM708SARZ is suitable for monitoring 5 V power supplies/batteries and can also monitor microprocessor activity. The ADM705/ADM706 provide power-supply monitoring circuitry that generate a reset output during power-up, power- down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. The ADM708SARZ is is activated if the watchdog input has not been toggled within 1.60 seconds.

Parametrics

ADM708SARZ absolute maximum ratings: (1)Digital Output Current: 20 mA; (2)Power Dissipation, N-8 PDIP: 727 mW; (3)θJA Thermal Impedance: 135℃/W; (4)Power Dissipation, R-8 SOIC: 470 mW; (5)θJA Thermal Impedance: 110℃/W; (6)Power Dissipation, RM-8 MSOP: 900 mW; (7)θJA Thermal Impedance: 206℃/W; (8)VCC: -0.3 V to +6 V; (9)All Other Inputs: -0.3 V to VCC + 0.3 V.

Features

ADM708SARZ features: (1)200 ms reset pulse width; (2)Debounced TTL/CMOS manual reset input (MR); (3)Independent watchdog timer (ADM705/ADM706); (4)1.60 sec timeout (ADM705/ADM706); (5)Active high reset output (ADM707/ADM708); (6)Voltage monitor for power fail or low battery warning; (7)Superior upgrade for MAX705 to MAX708.

Diagrams

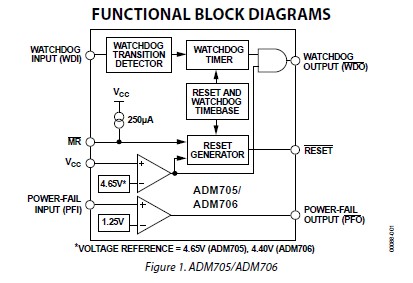

 ADM708SARZ pin connection
