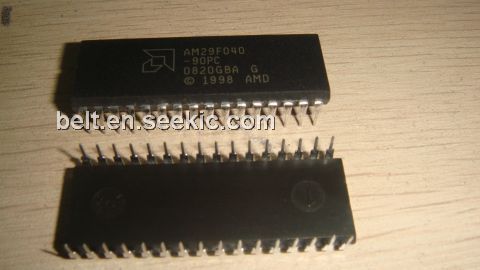

Product Summary

The AM29F040-90PC is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7.

Parametrics

AM29F040-90PC absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –2.0 V to 7.0 V; A9, OE: –2.0 V to 12.5 V; All other pins: –2.0 V to 7.0 V; (4)Output Short Circuit Current: 200 mA.

Features

AM29F040-90PC features: (1)5.0 V ± 10% for read and write operations; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption; (5)Flexible sector architecture; (6)Minimum 1,000,000 program/erase cycles per; (7)sector guaranteed.

Diagrams

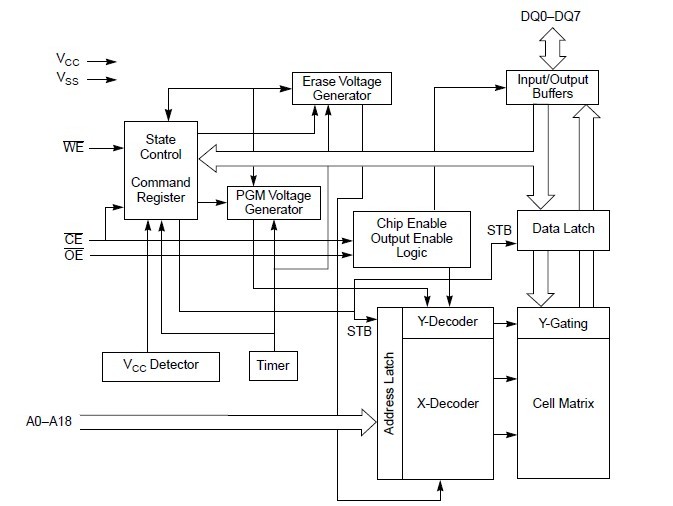

AM29F040-90PC block diagram
