Product Summary
The OP470GS is a high-performance monolithic quad operational amplifier with exceptionally low voltage noise, 5 nV/X/ Hz at 1 kHz Max, offering comparable performance to ADI industry standard OP27. Power consumption of the quad OP470GS is half that of four OP27s, a significant advantage for power conscious applications.
Parametrics
OP470GS absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Differential Input Voltage2:±1.0 V; (3)Differential Input Current2: ±25 mA; (4)Input Voltage: Supply Voltage; (5)Output Short-Circuit Duration:Continuous; (6)Storage Temperature Range:P, Y Package:–65°C to +150°C; (7)Lead Temperature Range (Soldering 60 sec):300°C; (8)Junction Temperature (Tj) :–65°C to +150°C; (9)Operating Temperature Range:–40°C to +85°C.
Features
OP470GS features: (1)Very Low-Noise; (2)Excellent Input Offset Voltage, 0.4 mV Max; (3)Low Offset Voltage Drift, 2 μV/°C Max; (4)Very High Gain, 1000 V/mV Min; (5)Outstanding CMR, 110 dB Min; (6)Slew Rate, 2 μV/μs Typ; (7)Gain-Bandwidth Product, 6 MHz Typ; (8)Industry Standard Quad Pinouts; (9)Available in Die Form.

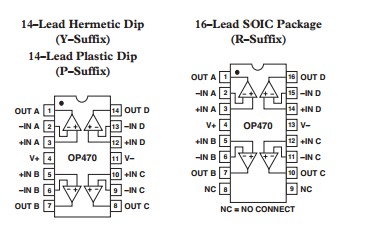

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP470GS |
|
IC OPAMP GP 6MHZ QUAD LN 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP470GS-REEL |
|
IC OPAMP GP 6MHZ QUAD LN 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP470GSZ |
|
IC OPAMP GP 6MHZ QUAD LN 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP470GSZ-REEL |
|
IC OPAMP GP 6MHZ QUAD LN 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
