Product Summary

The CS5340-CZZR is a complete analog-to-digital converter for digital audio systems. It performs sampling, analog-to-digital conversion, and anti-alias filtering, generating 24-bit values for both left and right inputs in serial form at sample rates up to 200 kHz per channel. The CS5340-CZZR uses a 5th-order, multi-bit Delta-Sigma modulator followed by digital filtering and decimation, which removes the need for an external anti-alias filter. The CS5340-CZZR is ideal for audio systems requiring wide dynamic range, negligible distortion and low noise, such as set-top boxes, DVD-karaoke players, DVD recorders, A/V receivers, and automotive applications.

Parametrics

CS5340-CZZR absolute maximum ratings: (1)DC Power Supplies: Analog:-0.3V to +6.0V, Logic:-0.3V to +6.0V, Digital:-0.3V to +6.0V; (2)Input Current:-10mA to +10mA; (3)Analog Input Voltage:GND-0.7V to VA+0.7V; (4)Digital Input Voltage:-0.7V to VL+0.7V; (5)Ambient Operating Temperature (Power Applied):-50℃ to +95℃; (6)Storage Temperature:-65℃ to +150℃.

Features

CS5340-CZZR features: (1)Advanced Multi-bit Delta-Sigma Architecture; (2)24-bit Conversion; (3)Supports All Audio Sample Rates Including 192 kHz; (4)101 dB Dynamic Range at 5 V; (5)-94 dB THD+N; (6)90 mW Power Consumption; (7)High-Pass Filter to Remove DC Offsets; (8)Analog/Digital Core Supplies from 3.3 V to 5 V; (9)Supports Logic Levels between 1.8 V and 5 V; (10)Auto-detect Mode Selection in Slave Mode; (11)Auto-Detect MCLK Divider; (12)Pin Compatible with CS5341.

Diagrams

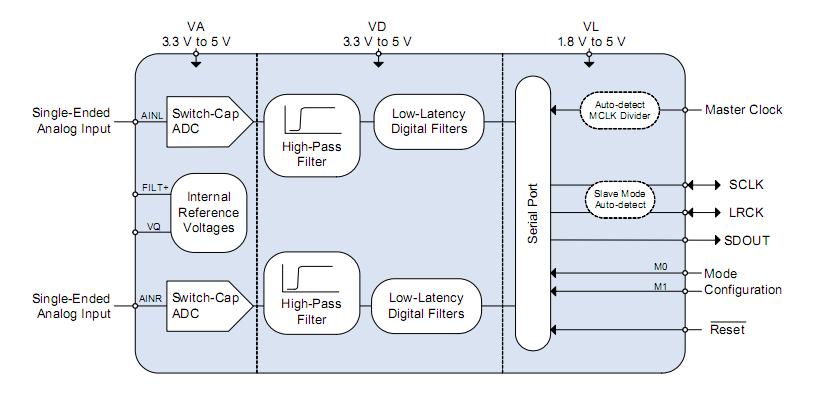

CS5340-CZZR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CS5340-CZZR
CS5340-CZZR

Cirrus Logic

Audio A/D Converter ICs IC 101dB 192kHz Multi-bit Audio ADC

Data Sheet

0-2000: $2.33
2000-3090: $2.33
