Product Summary

The DTC114EKA T146 is a surface mount transistor.

Parametrics

DTC114EKA T146 absolute maximum ratings: (1)Supply Voltage:50V; (2)Input Voltage:-10 to 40V; (3)Output Current:50 to 100 mA;(4)Storage Temperature Range:- 55°C to 150°C; (5)Junction Temperature: 150°C; (6)Power dissipation:200mW.

Features

DTC114EKA T146 features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2) The bias resistors consist of thinfilm resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3) Only the on /off conditions need to; (8)be set for operation, making device design easy.

Diagrams

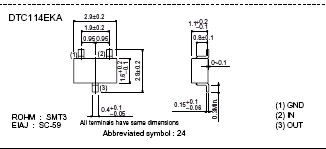

DTC114EKA T146 Dimmension
