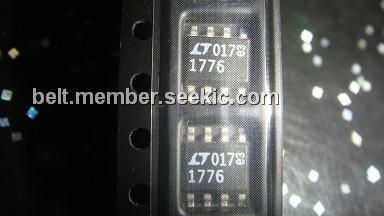

LT1776CS8#TRPBF

0.7A, SOP-8, Wide Input Range, High Efficiency, Step-Down Switching Regulator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.50

PartNumber:: LT1776CS8#TRPBF

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-22

From Other Seller

Part Number:LT1776CS8#TRPBF
US $2.00 - 2.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1776CS8#TRPBF is a wide input range, high efficiency Buck (step-down) switching regulator. The monolithic die includes all oscillator, control and protection circuitry. The part can accept input voltages as high as 60V and contains an output switch rated at 700mA peak current. Current mode control delivers excellent dynamic input supply rejection and short-circuit protection. The LT1776CS8#TRPBF contains several features to enhance efficiency. The internal control circuitry is normally powered via the VCC pin, thereby minimizing power drawn directly from the VIN supply (see Applications Information). The action of the LT1776CS8#TRPBF switch circuitry is also load dependent. At medium to high loads, the output switch circuitry maintains fast rise time for good efficiency. At light loads, rise time is deliberately reduced to avoid pulse skipping behavior.

Parametrics

LT1776CS8#TRPBF absolute maximum ratings: (1)Supply Voltage: 60V; (2)Switch Voltage: 60V; (3)SHDN, SYNC Pin Voltage: 7V; (4)VCC Pin Voltage: 30V; (5)FB Pin Voltage: 3V; (6)Operating Junction Temperature Range: 0℃ to 125℃; (7)Storage Temperature Range: –65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1776CS8#TRPBF features: (1)Wide Input Range: 7.4V to 40V; (2)Tolerates Input Transients to 60V; (3)700mA Peak Switch Rating; (4)Adaptive Switch Drive Maintains Efficiency at High Load Without Pulse Skipping at Light Load; (5)True Current Mode Control; (6)200kHz Fixed Operating Frequency; (7)Synchronizable to 400kHz; (8)Low Supply Current in Shutdown: 30mA; (9)Available in 8-Pin SO and PDIP Packages.
