Product Summary

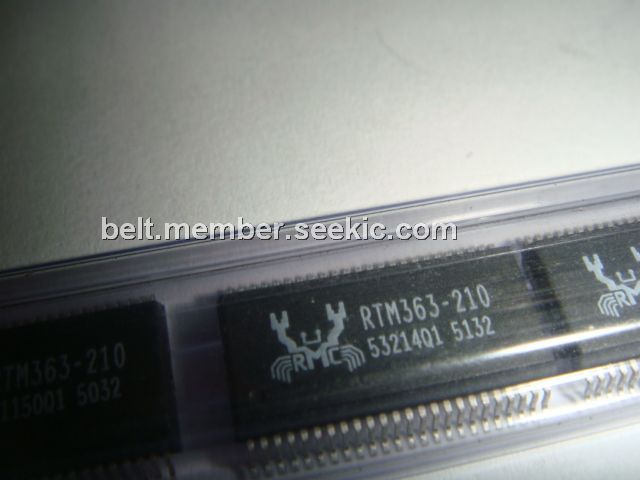

The RTM363-210 is a 48-pin package, single-chip frequency generator that meets INTEL CK409 clock synthesizer/driver specification. This chip provides a standard serial bus for programmable clock functions. Through this interface, spread spectrum technology can be enabled to reduce EMI.
Parametrics
RTM363-210 absolute maximum ratings: (1)Absolute VDD A: -0.5 to 4.6 V; (2)Absolute VDD I/O: -0.5 to 4.6 V; (3)Ts Storage Temperature: -65 to 150℃; (4)Ta Ambient Temperature: 0 to 70℃; (5)Absolute VihAbsolute VDD A 3.3V core supply Voltage -0.5 to 4.6 V; (6)Absolute VDD I/O 3.3V I/O supply Voltage -0.5 to 4.6 V; (7)Ts Storage Temperature -65 to 150℃; (8)Ta Ambient Temperature 0 to 70℃; (9)Absolute Vih: -0.5 to 4.6V; (10)Absolute Vil: -0.5V; (11)ESD: 2000V; (12)Operating Vdd A: 3.135 to 3.465 V; (13)Operating Vdd I/O: 3.135 to 3.465 V; (14)Operating Vih: 2.0 to Vdd+0.3 V; (15)Operating Vil: Vss-0.3 to 0.8V.
Features
RTM363-210 features: (1)CPU frequency ratio supports up to 400MHz; (2)Power down feature; (3)Programmable spread spectrum depth; (4)Programmable spread spectrum model; (5)Programmable driving strength; (6)Programmable skew delay; (7)Programmable PLL frequency; (8)Programmable SRC/AGP/PCI fixed mode; (9)Programmable loop filter; (10)Programmable smooth-divider; (11)Programmable current Iref; (12)Programmable watchdog & smooth reset; (13)DOS,WIN9x/WIN2000/WINNT/XP apps.

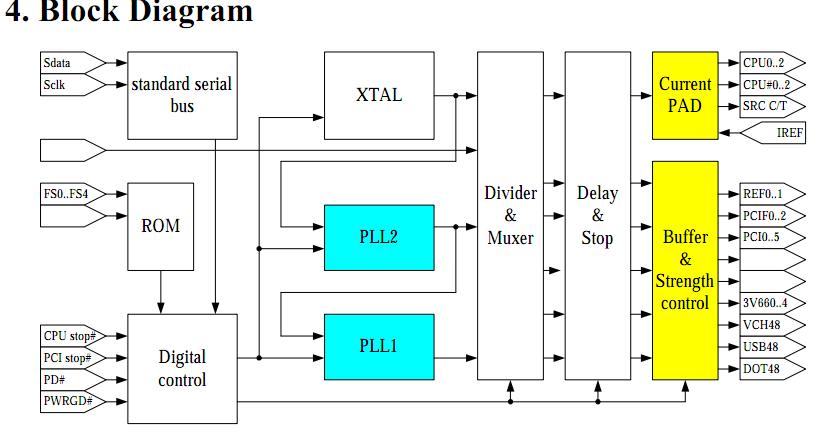

Diagrams
