Product Summary

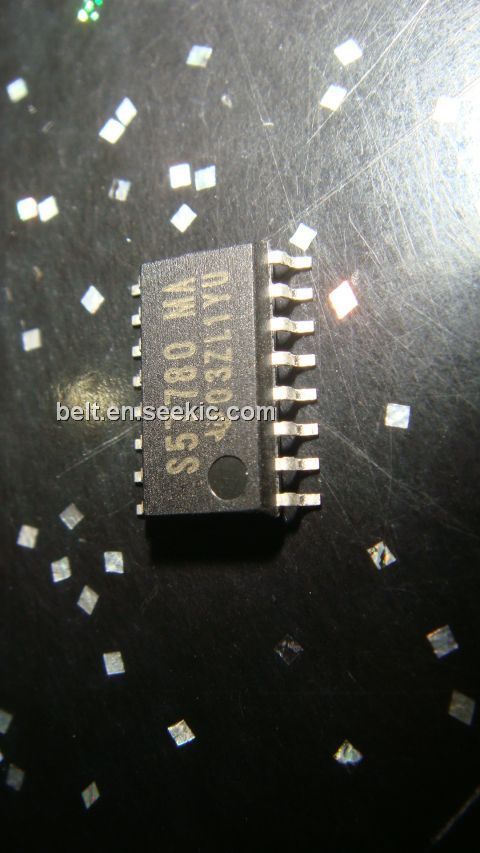

The S57780MA is a T1/CEPT/ISDN-PRI transformer.

Parametrics

S57780MA absolute maximum ratings: (1)Electrical Specifications @ 25℃; (2)Turns Ratio: 1CT:1CT; (3)OCL: 1.2mH/Min; (4)CWW: 40pF Max; (5)L.L: 1.0μH Max; (6) HI-POT: 1500Vms.

Features

S57780MA features: (1)Extended and standard temperature range models; (2)Dual surface mount package contains both transmit and receive; (3)Models matched to leading transceiver ICs; (4)Operating temperature range:0℃ to +70℃; (5)Storage temperature range: -25℃ to +125℃.

Diagrams

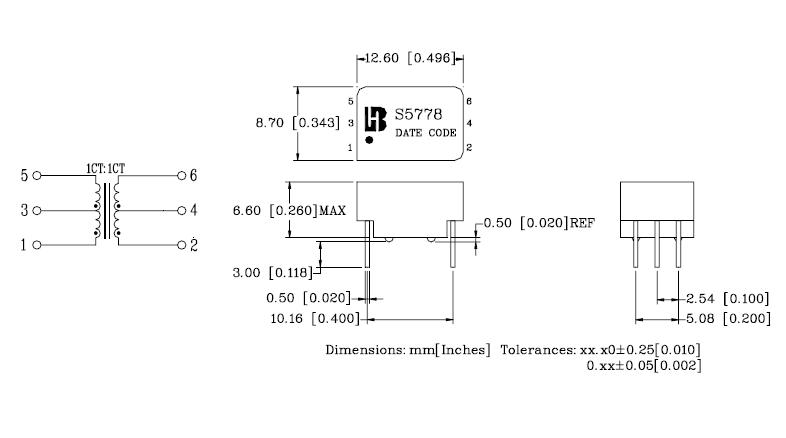

S57780MA demmision
