Product Summary

The NH82801GB/SL8FX is a I/O controller.

Parametrics

NH82801GB/SL8FX absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground: -0.5 to Vcc3_3 + 0.5 V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground; (3)(V5REF=5 V): -0.5 to V5REF + 0.5 V; (4)1.05 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (5)1.5 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (6)3.3 V Supply Voltage with respect to VSS: -0.5 to 4.6 V; (7)5.0 V Supply Voltage with respect to VSS: -0.5 to 5.5 V; (8)V_CPU_IO Supply Voltage with respect to VSS: -0.5 to 2.1 V.

Features

NH82801GB/SL8FX features: (1)PCI Express endpoint; (2)Independent Bus Master logic for eight general purpose streams: four input and four output; (3)Support three external Codecs; (4)Supports variable length stream slots; (5)Supports multichannel, 32-bit sample depth and 192kHz sample rate output; (6)Provides mic array support; (7)Allows for non-48 kHz sampling output; (8)Support for ACPI Device States; (9)NEW: Docking Support (Mobile Only); (10)NEW: Low Voltage Mode (Mobile/Ultra Mobile Only).

Diagrams

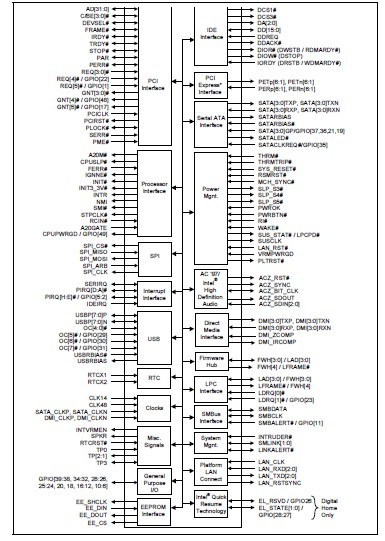

NH82801GB/SL8FX block diagram
