Product Summary

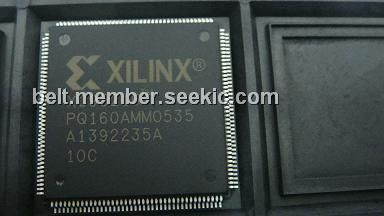

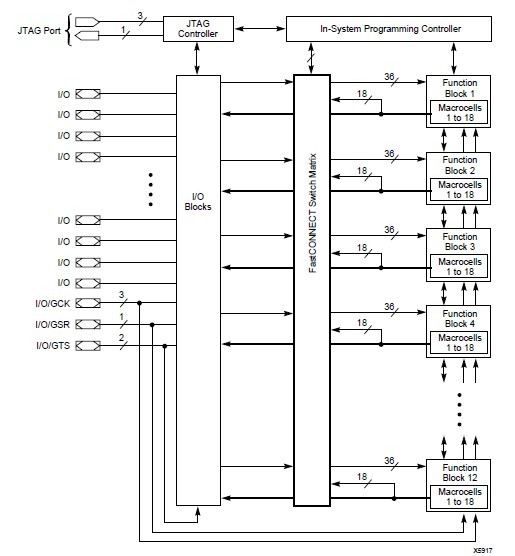

The XC95216-10PQ160C is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. XC95216-10PQ160C is comprised of twelve 36V18 Function Blocks, providing 4,800 usable gates with propagation delays of 10 ns. See Figure 2 for the architecture overview.
Parametrics
XC95216-10PQ160C absolute maximum ratings: (1)VCC Supply voltage relative to GND: -0.5 to 7.0 V; (2)VIN DC input voltage relative to GND: -0.5 to VCC + 0.5 V; (3)VTS Voltage applied to 3-state output with respect to GND: -0.5 to VCC + 0.5 V; (4)TSTG Storage temperature: -65 to +150 ℃; (5)TSOL Max soldering temperature (10 s @ 1/16 in = 1.5 mm): +260 ℃.
Features
XC95216-10PQ160C features: (1)10 ns pin-to-pin logic delays on all pins; (2)fCNT to 111 MHz; (3)216 macrocells with 4800 usable gates; (4)Up to 166 user I/O pins; (5)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (6)Programmable power reduction mode in each macrocell; (7)Slew rate control on individual outputs; (8)User programmable ground pin capability; (9)Extended pattern security features for design protection; (10)High-drive 24 mA outputs; (11)3.3 V or 5 V I/O capability; (12)Advanced CMOS 5V FastFLASH technology; (13)Supports parallel programming of more than one XC9500 concurrently; (14)Available in 160-pin PQFP, 352-pin BGA, and 208-pin HQFP packages.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XC95216-10PQ160C |
IC CPLD 4.8K 216MCELL 160-PQFP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
