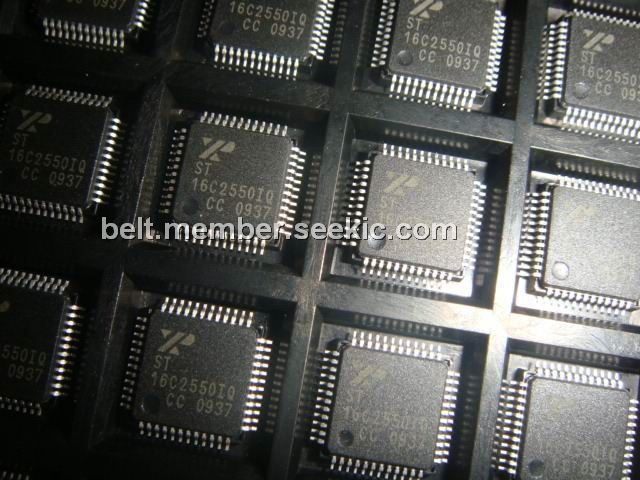

ST16C2550IQ48-F

asynchronous receiver and transmitter, QFP48, 7 Volts, 500 mW, 2 independent UART channels, 16B

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~1.50

PartNumber:: ST16C2550IQ48-F

Brand:: Exar Corporation - EXAR | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-21

From Other Seller

Part Number:ST16C2550IQ48-F
US $1.20 - 1.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

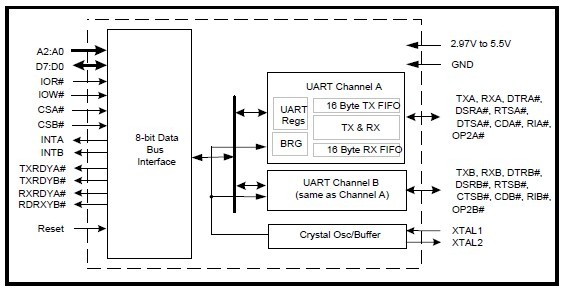

The ST16C2550IQ48-F is a dual universal asynchronous receiver and transmitter (UART). The ST16C2550IQ48-F is an improved version of the PC16550 UART with higher operating speed and faster access times. The ST16C2550IQ48-F provides enhanced UART functions with 16 byte FIFO, a modem control interface, and data rates up to 4 Mbps. Onboard status registers provide the user with error indications and operational status. System interrupts and modem control features may be tailored by external software to meet specific user requirements. Independent programmable baud rate generators are provided to select transmit and receive clock rates from 50 bps to 4 Mbps. The Baud Rate Generator can be configured for either crystal or external clock input. An internal loopback capability allows onboard diagnostics. The ST16C2550IQ48-F is available in a 44-pin PLCC and 48-pin TQFP packages. The ST16C2550IQ48-F is fabricated in an advanced CMOS process capable of operating from 2.97 volt to 5.5 volt power supply.

Parametrics

ST16C2550IQ48-F absolute maximum ratings: (1)Power Supply Range: 7 Volts; (2)Voltage at Any Pin: GND-0.3 V to +5.5 V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃; (5)Package Dissipation: 500 mW.

Features

ST16C2550IQ48-F features: (1)Pin-to-pin compatible to Exar ST16C2450, XR16L2550 and XR16L2750; (2)Pin-to-pin compatible to TI TL16C752B on the 48-TQFP package; (3)Pin alike XR16C2850 48-TQFP package but without CLK8/16, CLKSEL and HDCNTL inputs; (4)2 independent UART channels; (5)Crystal oscillator or external clock input; (6)48-TQFP and 44-PLCC packages.
