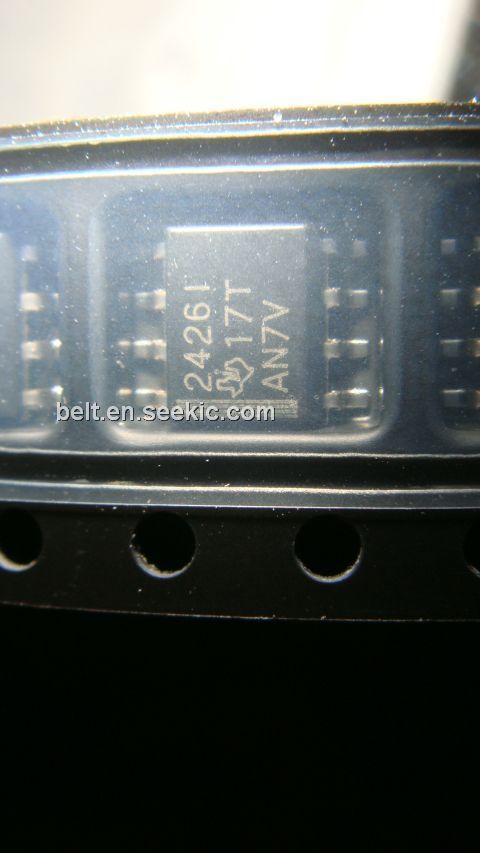

Product Summary

In signal-conditioning applications utilizing a single power source, a reference voltage equal to one-half the supply voltage is required for termination of all analog signal grounds. Texas Instruments presents a precision virtual ground whose output voltage is always equal to one-half the input voltage, the TLE2426IDR rail splitter. The unique combination of a high-performance, micropower operational amplifier and a precisiontrimmed divider on a single silicon chip results in a precise VO/VI ratio of 0.5 while sinking and sourcing current. The TLE2426IDR provides a lowimpedance output with 20 mA of sink and source capability while drawing less than 280 mA of supply current over the full input range of 4 V to 40 V. A designer need not pay the price in terms of board space for a conventional signal ground consisting of resistors, capacitors, operational amplifiers, and voltage references. The performance and precision of the TLE2426IDR is available in an easy-to-use, space saving, 3-terminal LP package. For increased performance, the optional 8-pin packages provide a noise-reduction pin. With the addition of an external capacitor (CNR), peak-to-peak noise is reduced while line ripple rejection is improved.

Parametrics

TLE2426IDR absolute maximum ratings: (1)Continuous input voltage, VI: 40 V; (2)Continuous filter trap voltage: 40 V; (3)Output current, IO: ±80 mA; (4)Duration of short-circuit current at (or below) 25℃ : unlimited; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃; I suffix: -40℃ to 85℃; M suffix: -55℃ to 125℃; (7)Storage temperature range, Tstg: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG or LP package: 300℃.

Features

TLE2426IDR features: (1)1/2 VI Virtual Ground for Analog Systems; (2)Self-Contained 3-terminal TO-226AA Package; (3)Micropower Operation: 170 mA Typ, VI = 5 V; (4)Wide VI Range : 4 V to 40 V; (5)High Output-Current Capability: Source: 20 mA Typ; Sink: 20 mA Typ; (6)Excellent Output Regulation: -45 mV Typ at IO = 0 to -10 mA; +15 mV Typ at IO = 0 to +10 mA; (7)Low-Impedance Output: 0.0075 W Typ; (8)Noise Reduction Pin (D, JG, and P Packages Only).

Diagrams

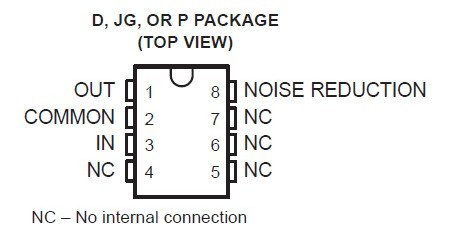

TLE2426IDR diagram
