Product Summary

The V375A5C400BL is a DC-DC converter module. V375A5C400BL uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component.

Parametrics

V375A5C400BL absolute maximum ratings: (1)+In to –In voltage: -0.5 to +425 Vdc; (2)+In to –In voltage: 500 Vdc; (3)PC to –In voltage: -0.5 to +7.0 Vdc; (4)PR to –In voltage: -0.5 to +7.0 Vdc; (5)+Out to –Out voltage: -0.5 to +7 Vdc; (6)+Sense to –Out voltage: -0.5 to +7 Vdc; (7)–Sense to –Out voltage: 1.0 Vdc; (8)SC to –Out voltage: -0.5 to +1.5 Vdc; (9)Isolation voltage (in to out): 3000 Vrms; (10)Isolation voltage (in to base): 1550 Vrms; (11)Isolation voltage (out to base): 500 Vrms; (12)Storage temperature (C–Grade): -40 to +125 ℃; (13)Operating temperature (C–Grade): -20 to +100 ℃; (14)Pin soldering temperature: 260℃; (15)Pin soldering temperature: 390℃.

Features

V375A5C400BL features: (1)DC input range: 250 - 425V; (2)Input surge withstand: 500V for 100ms; (3)DC output: 5V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.2% no load to full load; (6)Efficiency: 83%; (7)Maximum operating temperature: 100℃ at full load; (8)Power density: 79W/cubic inch; (9)Height above board: 0.43 in (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.

Diagrams

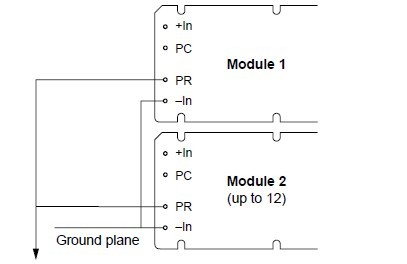

V375A5C400BL diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
V375A5C400BL
V375A5C400BL


CONVERTER MOD DC/DC 5V 400W

Data Sheet

0-1: $144.42
1-10: $139.44
10-50: $132.47
V375A5C400BL2
V375A5C400BL2


CONVERTER MOD DC/DC 5V 400W

Data Sheet

0-1: $138.00
V375A5C400BL3
V375A5C400BL3


CONVERTER MOD DC/DC 5V 400W

Data Sheet

0-1: $138.00
