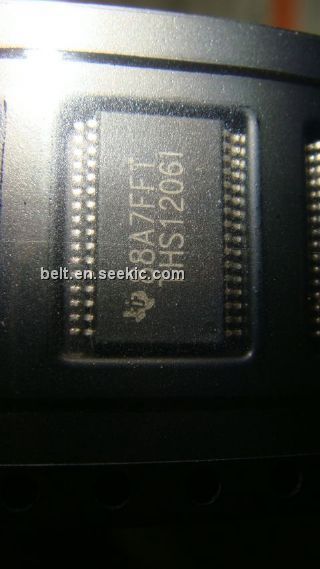

THS1206IDA

12-bit, 6 MSPS analog-to-digital converter, TSSOP, –0.3 V to 6.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.00~11.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5000 :	11.00 / Piece

PartNumber:: THS1206IDA

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Vivian's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-10

From Other Seller

Part Number:THS1206IDA
US $11.00 - 11.00
Quantity:

piece

Product Summary

The THS1206IDA is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. The applications of the THS1206IDA are (1)Radar Applications; (2)Communications; (3)Control Applications; (4)High-Speed DSP Front-End; (5)Automotive Applications.

Parametrics

THS1206IDA absolute maximum ratings: (1)Supply voltage range, DGND to DVDD: –0.3 V to 6.5 V; BGND to BVDD: –0.3 V to 6.5 V; AGND to AVDD: –0.3 V to 6.5 V; (2)Analog input voltage range AGND: – 0.3 V to AVDD + 1.5 V; (3)Reference input voltage: –0.3 + AGND to AVDD + 0.3 V; (4)Digital input voltage range: –0.3 V to BVDD/DVDD + 0.3 V ; (5)Operating virtual junction temperature range, TJ: –55°C to 150°C; (6)Operating free-air temperature range,TA: 0°C to 70°C; (7)Storage temperature range, Tstg: –65°C to 150°C; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260°C.

Features

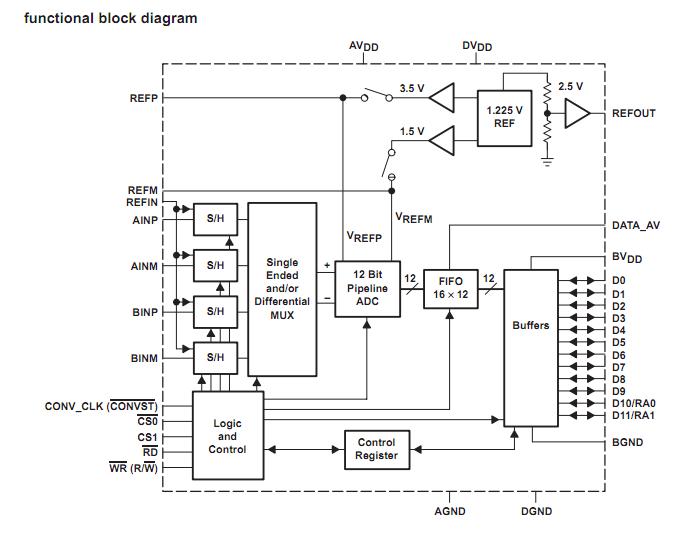

THS1206IDA features: (1)High-Speed 6 MSPS ADC; (2)4 Single-Ended or 2 Differential Inputs; (3)Simultaneous Sampling of 4 Single-Ended Signals or 2 Differential Signals or Combination of Both; (4)Differential Nonlinearity Error: ±1 LSB; (5)Integral Nonlinearity Error: ±1.5 LSB; (6)Signal-to-Noise and Distortion Ratio: 68 dB at fI = 2 MHz; (7)Auto-Scan Mode for 2, 3, or 4 Inputs; (8)3-V or 5-V Digital Interface Compatible; (9)Low Power: 216 mW Max; (10)5-V Analog Single Supply Operation; (11)Internal Voltage References: 50 PPM/°C and ±5% Accuracy; (12)Glueless DSP Interface; (13)Parallel μC/DSP Interface; (14)Integrated FIFO; (15)Available in TSSOP Package.
