Product Summary

The AD766JNZ 16-bit DSP DACPORT provides a direct, threewire interface to the serial ports of popular DSP processors, including the ADSP-2101, TMS320CXX, and DSP56001. No additional "glue logic" is required. The AD766JNZ is also complete, offering on-chip serial-to-parallel input format conversion, a 16-bit current-steering DAC, voltage reference, and a voltage output op amp.

Parametrics

AD766JNZ absolute maximum ratings: (1)VL to DGND:0 to 13.2 V; (2)VS to AGND:0 to 13.2 V; (3)–VL to DGND : –13.2 V to 0 V; (4)–VS to AGND : –13.2 V to 0 V; (5)Digital Inputs to DGND :–0.3 V to VL; (6)AGND to DGND :±0.3 V; (7)Short Circuit Protection :Indefinite Short to Ground; (8)Soldering : +300°C, 10 sec.

Features

AD766JNZ features: (1)Zero-Chip Interface to Digital Signal Processors Complete DACPORT; (2)On-Chip Voltage Reference:Voltage and Current Outputs;Serial, Twos-Complement Input; (3)±3 V Output; (4)Sample Rates to 390 kSPS; (5)94 dB Minimum Signal-to-Noise Ratio; (6)–81 dB Maximum Total Harmonic Distortion; (7)15-Bit Monotonicity; (8)±5 V to 612 V Operation; (9)16-Pin Plastic and Ceramic Packages; (10)Available in Commercial, Industrial, and Military Temperature Ranges.

Diagrams

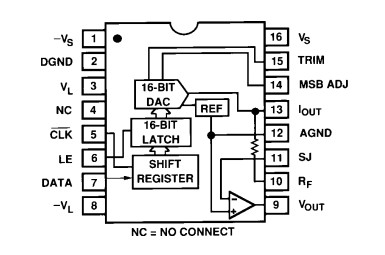

AD766JNZ Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD766JNZ
AD766JNZ

IC DAC 16BIT W/VREF 16-DIP
Data Sheet
0-1: $15.20
1-25: $12.92
25-100: $12.00
100-250: $11.02
250-500: $10.48
500-1000: $10.13
