Product Summary

The AD8606ARZ is a single, dual, and quad rail-to-rail input and output, single-supply amplifier. The AD8606ARZ features very low offset voltage, low input voltage and current noise, and wide signal bandwidth. The AD8606ARZ uses patented DigiTrim trimming technique, which achieves superior precision without laser trimming. The applications of the AD8606ARZ include Photodiode amplification, Battery-powered instrumentation, Multipole filters, Sensors, Barcode scanners and Audio.

Parametrics

AD8606ARZ absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: 6 V; (4)Output Short-Circuit Duration to GND: Observe Derating curves; (5)Storage Temperature Range, All Packages: -65 to +150℃; (6)Operating Temperature Range: -40 to +125℃; (7)Junction Temperature Range, All Packages: -65 to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃.

Features

AD8606ARZ features: (1)Low offset voltage: 65 μV maximum; (2)Low input bias currents: 1 pA maximum; (3)Low noise: 8 nV/Hz; (4)Wide bandwidth: 10 MHz; (5)High open-loop gain: 120 dB; (6)Unity gain stable; (7)Single-supply operation: 2.7 V to 5.5 V; (8)MicroCSP.

Diagrams

AD8606ARZ circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

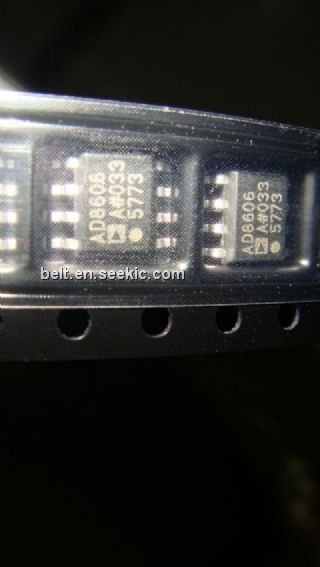

AD8606ARZ
AD8606ARZ

IC OPAMP GP R-R CMOS 10MHZ 8SOIC
Data Sheet
0-1: $1.87
1-10: $1.67
10-100: $1.37
100-250: $1.24
250-500: $1.11
500-1000: $0.94
1000-2500: $0.89
AD8606ARZ-REEL
AD8606ARZ-REEL

IC OPAMP GP R-R CMOS 10MHZ 8SOIC
Data Sheet
0-2500: $0.89
AD8606ARZ-REEL7
AD8606ARZ-REEL7

IC OPAMP GP R-R CMOS 10MHZ 8SOIC
Data Sheet
0-1000: $0.94
