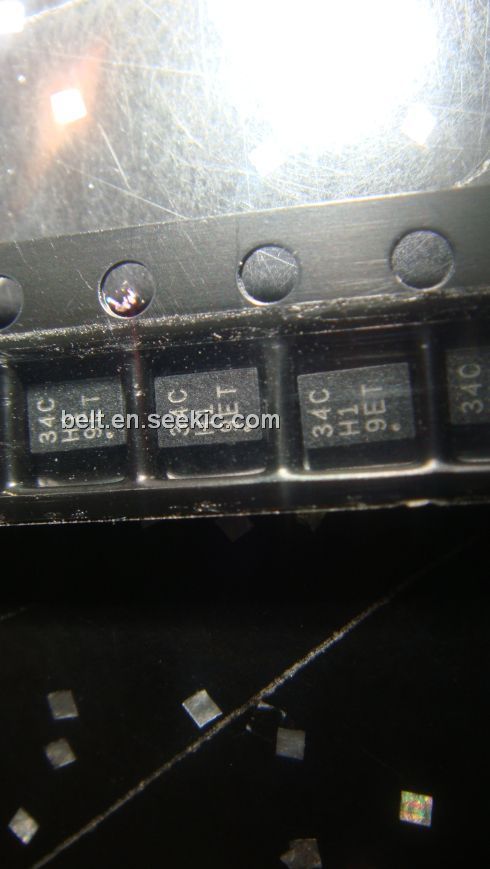

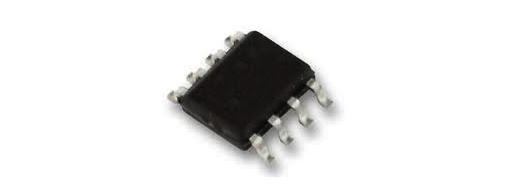

AT34C02CY6-YH-T

Two-wire Serial EEPROM, 5.0 mA, –1.0V to +7.0V, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5000 :	0.20 / Piece

PartNumber:: AT34C02CY6-YH-T

Brand:: ATMEL Corporation - ATMEL | Pack: MLP | D/C: 08+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Vivian's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-02

From Other Seller

Part Number:AT34C02CY6-YH-T
US $0.20 - 0.20
Quantity:

piece

Product Summary

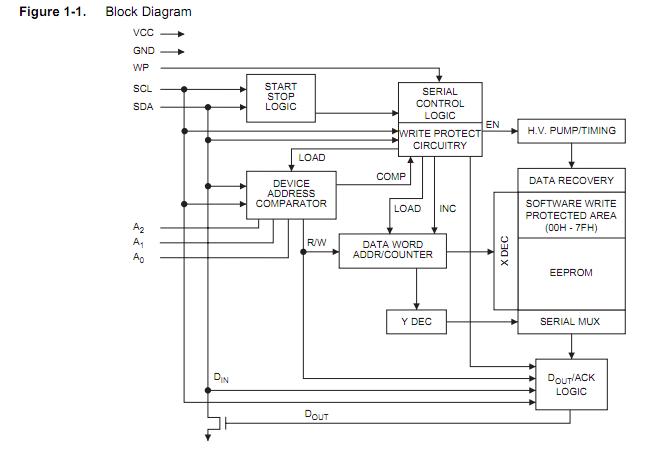

The AT34C02CY6-YH-T is a Two-wire Serial EEPROM with Permanent and Reversible Software Write Protect. The AT34C02CY6-YH-T provides 2048 bits of serial electrically-erasable and programmable read only memory (EEPROM) organized as 256 words of 8 bits each. The first-half of the device incorporates a permanent and a reversible software write protection feature while hardware write protection for the entire array is available via an external pin. Once the permanent software write protection is enabled, by sending a special command to the device, it cannot be reversed. However, the reversible software write protection is enabled and can be reversed by sending a special command.

Parametrics

AT34C02CY6-YH-T absolute maximum ratings: (1)Operating Temperature:–55°C to +125°C; (2)Storage Temperature:–65°C to +150°C; (3)Voltage on Any Pin with Respect to Ground: –1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT34C02CY6-YH-T features: (1)Permanent and Reversible Software Write Protection for the First-half of the Array – Software Procedure to Verify Write Protect Status; (2)Hardware Write Protection for the Entire Array; (3)Low-voltage and Standard-voltage Operation– 1.7 (VCC = 1.7V to 5.5V); (4)Internally Organized 256 × 8; (5)Two-wire Serial Interface; (6)Schmitt Trigger, Filtered Inputs for Noise Suppression; (7)Bidirectional Data Transfer Protocol; (8)100 kHz (1.7V) and 400 kHz (2.7V and 5.0V) Compatibility; (9)16-byte Page Write Modes; (10)Partial Page Writes Are Allowed; (11)Self-timed Write Cycle (5 ms max); (12)High-reliability; (13)8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2×3), 8-lead TSSOP, and 8-ball dBGA2 Packages; (14)Die Sales: Wafer Form, Tape and Reel, and Bumped Wafers.
