Product Summary

The ISL6324ACRZ is a dual PWM controller. It delivers high efficiency and tight regulation from two synchronous buck DC/DC converters. The ISL6324ACRZ supports hybrid power control of AMD processors which operate from either a 6-bit parallel VID interface (PVI) or a serial VID interface (SVI). The dual output ISL6324ACRZ features a multi-phase controller to support uniplane VDD core voltage and a single phase controller to power the Northbridge (VDDNB) in SVI mode. Only the multi-phase controller is active in PVI mode to support uniplane VDD only processors.

Parametrics

ISL6324ACRZ absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6.2V; (2)Supply Voltage (PVCC): -0.3V to +15V; (3)Absolute Boot Voltage (VBOOT): GND - 0.3V to GND + 36V; (4)Phase Voltage (VPHASE): GND - 0.3V to 15V (PVCC = 12), GND - 8V (<400ns, 20μJ) to 24V (<200ns, VBOOT-PHASE = 12V); (5)Upper Gate Voltage (VUGATE): VPHASE - 0.3V to VBOOT + 0.3V, VPHASE - 3.5V (<100ns Pulse Width, 2μJ) to VBOOT + 0.3V; (6)Lower Gate Voltage (VLGATE): GND - 0.3V to PVCC + 0.3V, GND - 5V (<100ns Pulse Width, 2μJ) to PVCC+ 0.3V; (7)Input, Output, or I/O Voltage: GND - 0.3V to VCC + 0.3V.

Features

ISL6324ACRZ features: (1)Configuration Flexibility; (2)Parallel VID (6-bit) Interface Inputs for PVI Mode; (3)PSI_L Support via Phase Shedding; (4)Differential Remote Voltage Sensing; (5)Optimal Processor Core Voltage Transient Response.

Diagrams

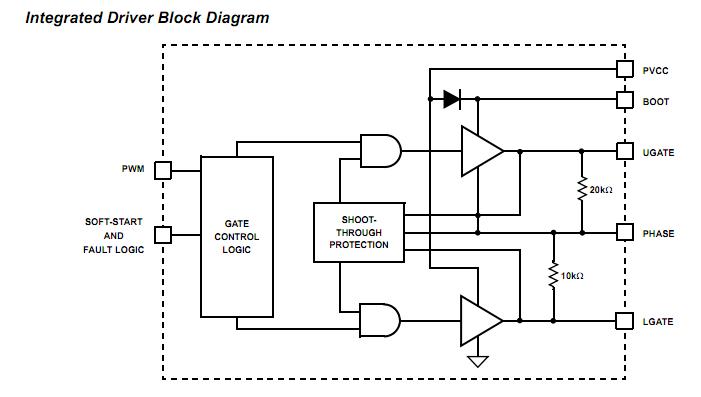

ISL6324ACRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

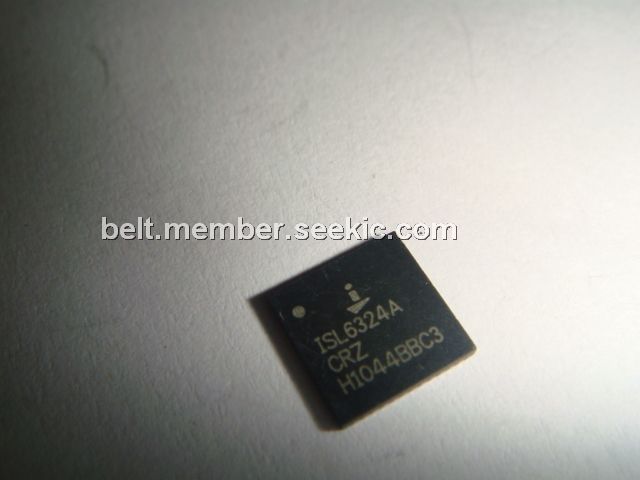

ISL6324ACRZ
ISL6324ACRZ


IC HYBRID CTRLR PWM DUAL 48QFN

Data Sheet

0-430: $1.49
ISL6324ACRZ-T
ISL6324ACRZ-T


IC HYBRID CTRLR PWM DUAL 48QFN

Data Sheet

0-4000: $1.17
