Product Summary

The MAX202ECSE is a 15kV ESD-protected, 5V RS-232 transceiver. The MAX202ECSE line driver/receiver is designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The driver and receiver of the MAX202ECSE for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification.

Parametrics

MAX202ECSE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages T_IN: -0.3V to (V+ + 0.3V); (5)R_IN: ±30V; (6)Output Voltages T_OUT: (V- - 0.3V) to (V+ + 0.3V); (7)R_OUT: -0.3V to (VCC + 0.3V); (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +165℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX202ECSE features: (1)Low-Voltage. 1μA Supply Current, True +3V to +5.5V RS-232 Transceivers with Auto-Shutdown; (2)Low-Power. ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers; (3)Low-Voltage or Data Cable. 15kV ESD-Protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors.

Diagrams

MAX202ECSE Charge-Pump Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

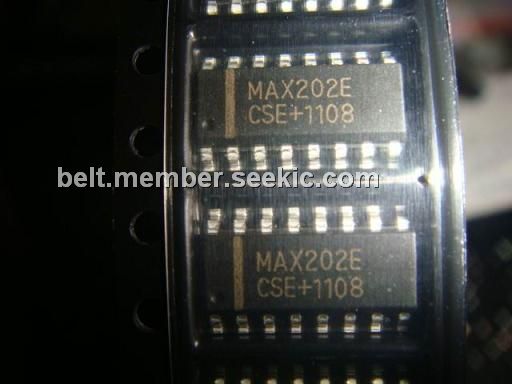

MAX202ECSE
MAX202ECSE

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
MAX202ECSE+
MAX202ECSE+

Maxim Integrated Products

RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver

Data Sheet

0-1: $2.91
1-25: $1.95
25-50: $1.42
50-100: $1.40
MAX202ECSE+G068
MAX202ECSE+G068

Maxim Integrated Products

RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver

Data Sheet

0-1: $2.84
1-25: $1.90
25-50: $1.73
50-100: $1.37
MAX202ECSE+TG068
MAX202ECSE+TG068

Maxim Integrated Products

RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver

Data Sheet

0-2080: $1.19
2080-2500: $1.19
MAX202ECSE+T
MAX202ECSE+T

Maxim Integrated Products

RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver

Data Sheet

0-2075: $1.23
2075-2500: $1.23
MAX202ECSE-T
MAX202ECSE-T

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
