Product Summary
The MAX499CWG is a high-speed, quad/triple, single-pole/double-throw video switch with on-board closed-loop buffer amplifier. The buffer amplifier features +6dB gain (AVCL = 2V/V), 250MHz -3dB bandwidth, 70MHz 0.1dB gain flatness, and 1250V/ms slew rate. Fast switching time (3ns) and fast settling time (12ns for a 4V step) make the MAX499CWG excellent choices for a wide variety of video applications. The low differential gain/phase errors (0.03%/0.06% and wide bandwidth make it ideal for both composite-video and RGB applications. The amplifier is capable of delivering 2.5V into back-terminated 50Ω or 75Ω cables, and they deliver 2V to a 75Ω load, allowing multiple cables to be driven from a single output. The corresponding dissipation for the three-channel MAX499CWG is 300mW enabled and 100mW disabled.
Parametrics
MAX499CWG absolute maximum ratings: (1)Supply Voltage (VCC to VEE): +12V; (2)Voltage on IN__ to GND : (VEE - 0.3V) to (VCC + 0.3V); (3)Voltage on Digital Inputs (LE, EN, A0, CS): -0.3V to (VCC + 0.3V); (4)Voltage on OUT_ (disabled): ±4V; (5)Output Short-Circuit Duration to -4V ≤ OUT≤+4V: Continuous; (6)Continuous Power Dissipation (TA = +70℃), 24-Pin SO (derate 11.76mW/℃ above +70℃): 941mW; 28-Pin SO (derate 12.5mW/℃ above +70℃): 1W; (7)Operating Temperature Range: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX499CWG features: (1)High Speed: 250MHz Small-Signal -3dB Bandwidth; 135MHz Full-Power -3dB Bandwidth; (2)70MHz 0.1dB Gain Flatness; (3)1250V/μs Slew Rate; (4)12ns to 0.1% Settling Time; (5)0.03°/0.06% Differential Phase/Gain Error; (6)2pF Input Capacitance; (7)3ns Channel-Switching Time; (8)120mVp-p Channel-Switching Transient; (9)Three-State Output Allows Large Switch Arrays; (10)Directly Drives 50Ω or 75Ω Back-Terminated Cables.

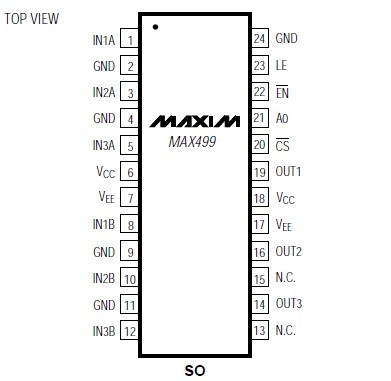

Diagrams
