Product Summary

The PCA82C251T is the interface between the CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.

Parametrics

PCA82C251T absolute maximum ratings: (1)VCC supply voltage: -0.3 to +7.0 V; (2)Vn DC voltage at pins 1, 4, 5 and 8: -0.3 to VCC + 0.3 V; (3)V6, 7 DC voltage at pins 6 and 7 0 V < VCC < 5.5 V; no time limit: -36 to +36 V; (4)Vtrt transient voltage at pins 6 and 7 see Fig.8: -200 to +200 V; (5)Tstg storage temperature: -55 +150 ℃; (6)Tamb ambient temperature: -40 +150 ℃; (7)Tvj virtual junction temperature: -40 to +150 ℃; (8)Vesd electrostatic discharge voltage: -2000 to +2000 V; -250 to +250 V.

Features

PCA82C251T features: (1)Fully compatible with the ISO 11898 standard; (2)High speed (up to 1 Mbaud); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference (RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference (EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground; (8)Low-current standby mode; (9)High speed (up to 1 MBd); (10)High immunity against electromagnetic interference.

Diagrams

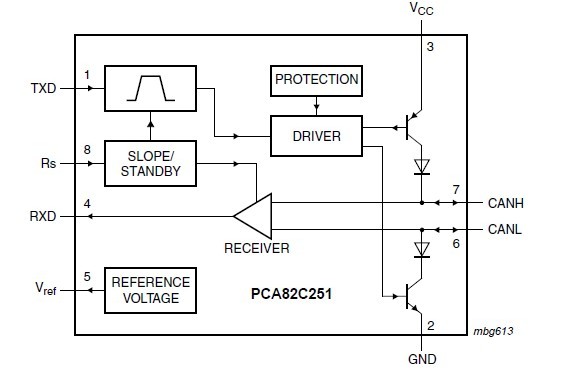

PCA82C251T block diagram
