Product Summary

The LM12CLK is a power op amp capable of driving ±25V at ±10A while operating from ±30V supplies. The monolithic IC can deliver 80W of sine wave power into a 4Ω load with 0.01% distortion. Power bandwidth is 60 kHz. Further, a peak dissipation capability of 800W allows it to handle reactive loads such as transducers, actuators or small motors without derating.

Parametrics

LM12CLK absolute maximum ratings: (1)Total Supply Voltage:80V; (2)Output Current:Internally Limited; (3)Storage Temperature Range:-65°C to 150°C; (4)Lead Temperature(Soldering, 10 seconds):300°C.

Features

LM12CLK features: (1)input protection; (2)controlled turn on; (3)thermal limiting; (4)overvoltage shutdown; (5)output-current limiting; (6)dynamic safe-area protection.

Diagrams

LM12CLK Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

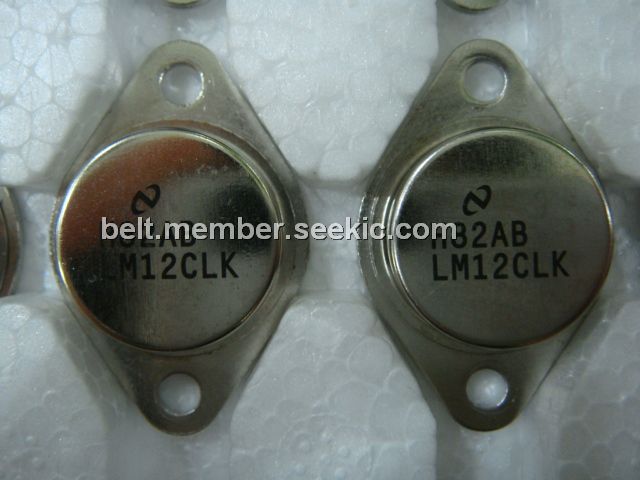

LM12CLK
LM12CLK

Other


Data Sheet

Negotiable
LM12CLK/NOPB
LM12CLK/NOPB


IC OP AMP 80W POWER TO-3

Data Sheet

Negotiable
