Product Summary

The LPC47N217-JV is a 3.3V PC 99, PC2001, and ACPI 2.0 compliant Super I/O Controller. The device implements the LPC interface, a pin reduced ISA interface which provides the same or better performance as the ISA/X-bus with a substantial savings in pins used. The part also includes 14 GPIO pins. The LPC47N217-JV incorporates a 16C550A compatible UART and one Multi-Mode parallel port with ChiProtect circuitry plus EPP and ECP support. The LPC47N217-JV also offers a full 16-bit internally decoded address bus, a Serial IRQ interface with PCI CLKRUN# support, relocatable configuration ports, and three DMA channel options.

Features

LPC47N217-JV features: (1)3.3 Volt Operation (5V tolerant); (2)Programmable Wakeup Event Interface(IO_PME# Pin); (3)SMI Support (IO_SMI# Pin); (4)GPIOs (14); (5)Two IRQ Input Pins; (6)XNOR Chain; (7)PC99a, PC2001; (8)ACPI 2.0 Compliant; (9)64-pin STQFP Package; (10)Intelligent Auto Power Management.

Diagrams

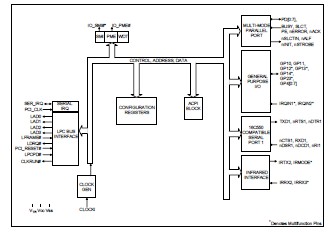

LPC47N217-JV diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LPC47N217-JV
LPC47N217-JV

SMSC

I/O Controller Interface IC 64-Pin Mobile I/O

Data Sheet
