Product Summary

The 11DQ06 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

11DQ06 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage,VRRM:60 V; (2)Non-repetitive Peak Reverse Voltage,VRSM:65 V; (3)RMS Forward Current,IF(RMS):1.57 A; (4)Operating JunctionTemperature Range ,Tjw:- 40 to + 150 °C; (5)Storage Temperature Range,Tstg:- 40 to + 150 °C; (6)Average Rectified Output Current:Without Fin or P.C.Board:0.89A (Ta=25°C);P.C.Board mounted :1.0A (Ta=54°C); (7)Surge Forward Current,IFSM:25A.

Features

11DQ06 features: (1) Miniature Size ; (2)Low Forward Voltage drop ; (3) Low Power Loss, High Efficiency ; (4)High Surge Capability ; (5)30 Volts thru 100 Volts Types Available ; (6)52mm Inside Tape Spacing Package Available.

Diagrams

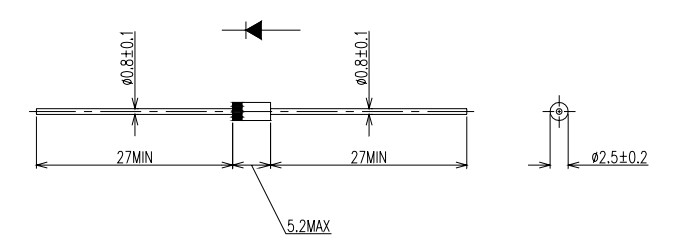

11DQ06 Dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
11DQ06
11DQ06


DIODE SCHOTTKY 60V 1.1A DO-41

Data Sheet

0-1: $0.34
1-10: $0.27
10-25: $0.22
25-100: $0.18
100-250: $0.15
250-500: $0.13
500-1000: $0.09
1000-2500: $0.09
2500-5000: $0.08
11DQ06TR
11DQ06TR


DIODE SCHOTTKY 60V 1.1A DO-41

Data Sheet

0-5000: $0.08
5000-10000: $0.08
10000-25000: $0.07
25000-50000: $0.07
50000-125000: $0.06
